SST404

Continuous Drain Current :
Drain Source Voltage VDS :
Drain Current (Idss at Vgs=0) :
Transistor Polarity : N-Channel
Configuration : Single
Mounting Style : SMD/SMT
Gate-Source Breakdown Voltage : - 40 V
Packaging : Tube
Package / Case : SO-8


Features:

· Monolithic Design
· High Slew Rate
· Low Offset/Drift Voltage
· Low Gate Leakage: 2 pA
· Low Noise
· High CMRR: 102 dB




Application

· Wideband Differential Amps
· High-Speed,Temp-Compensated,
Single-Ended Input Amps
· High-Speed Comparators
· Impedance Converters

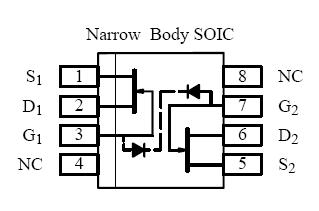

Pinout






Specifications

Gate-Drain, Gate-Source Voltage . . . . . . . . . . . . . . . . . . . . . . 40 V
Gate Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 mA
Lead Temperature (1/16" from case for 10 sec.) . . . . . . . . . . . 300
Storage Temperature : U Prefix . . . . . . . . . . . .......... . . 65 to 200
SST Prefix . . . . . . . . ............................................... . . . 55 to 150
Operating Junction Temperature . . . . . . . . . . . . . . .. . . 55 to 150
Power Dissipation : Per Side^a . . . . . . . . . . . . . ............... . .300 mW
Total^b . . . . . . . . . . . . . . . . . . ............................................ . 500 mW
Notes
a. Derate 2.4 mW/C above 25
b. Derate 4 mW/C above 25




Description

The SST404 series of high-performance monolithic dual JFETs features extremely low noise, tight offset voltage and low drift over temperature specifications, and is targeted for use in a wide range of precision instrumentation applications. This series has a wide selection of offset and drift specifications with the U401 featuring a 5-mV offset and 10V/
drift.

The SST404 U series' hermetically sealed TO-71 package is available with full military processing (see Military Information). The SST series SO-8 package provides ease of manufacturing, and the symmetrical pinout prevents improper orientation. The SO-8 package is available with tape-and-reel options for compatibility with automatic assembly methods (see Packaging Information). For similar high-gain products in TO-78 packaging, see the 2N5911/5912 data sheet.
