Product Details

Description



Application

Small package
Low on resistance : Ron = 0.5 Ω (max) (@VGS = −4 V)
                              : Ron = 0.7 Ω (max) (@VGS = −2.5 V)
Low gate threshold voltage

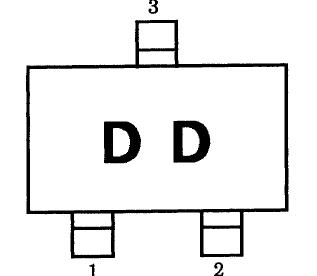

Pinout

Connection Diagram


Specifications

Characteristic Symbol Rating Unit
Drain-Source voltage VDS -30 V
Gate-Source voltage VGSS ±10 V
Drain current DC ID -600 mA
Pulse IDP -1200
Drain power dissipation (Ta =25°C) PD 200 mW
Channel temperature Tch 150 °C
Storage temperature range Tstg -55~150 °C
