Features:

• Active mixer with conversion gain
• No need for separate external LO driver
• Low LO drive level required to drive mixer
• RF and LO ports may be driven single-ended
• Single supply operation (+5V)
• High LO-RF isolation
• Broadband resistive 50 impedances on all
  three ports


Application

• Digital and spread spectrum communication systems
• 1700-2000 MHz transceivers for base station
  infrastructure equipment


Pinout

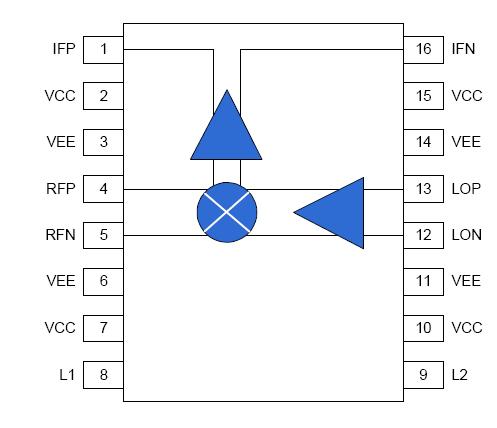

Connection Diagram


Specifications

Parameters Value Unit
Supply Voltage 6.0 VDC
LO Input +10 dBm
IF Input +15 dBm
Operating Temperature -40 to +85 ºC
Storage Temperature -65 to +150 ºC



Description

The Stanford Microdevices' SRM-2016 is a high linearity active mixer for use in a wide variety of communication systems covering the 1700-2000 MHz frequency bands. This device operates from a single 5V supply and provides 11dB of conversion gain while requiring only 0dBm input to the integrated LO driver. The SRM-2016 also includes an integrated on chip IF amplifier and is fabricated using silicon germanium device technology.

The SRM-2016 incorporates internal matching on each RF, IF, and LO port to enhance ease of use and to reduce the number of external components required. The RF and LO ports can be driven differential or single ended. Each broadband port has been designed to minimize performance degradation while operating into highly reactive components such as SAW filters.
