SRF-2016

Series: -
Function: Demodulator
LO Frequency: -
Voltage - Supply: 4.75 V ~ 5.25 V
Packaging: Tape & Reel (TR)
P1dB: 12dBm
Package / Case: 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package: 16-TSSOP
Current - Supply: 195mA
Manufacturer: RFMD
RF Frequency: 200MHz ~ 600MHz
Gain: -5dB
Noise Figure: 30dB


Features:

• Buffered IF OUT available through I axis
• Gain control in 20dB steps
• Excellent I/Q amplitude and phase balance
• High input P1dB


Application

• Digital and spread spectrum communication systems
• Cellular, PCS, DCS, 3G transceivers
• ISM band transceivers
• FWA receiver IF sections

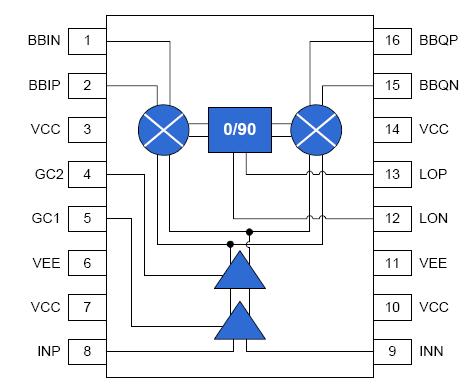

Pinout




Specifications

Parameters	Value	Unit
Supply Voltage	6.0	VDC
LO Input	+10	dBm
IF Input	+10	dBm
Operating Temperature	-40 to +85	ºC
Storage Temperature	-65 to +150	ºC

Description

The Stanford Microdevices' SRF-2016 is a multipurpose demodulator RFIC capable of both quadrature demodulation or direct IF output. This device features switchable gain control, high input P1dB, and excellent I/Q amplitude and phase balance.

The SRF-2016 uses silicon germanium device technology to yield a highly integrated RFIC for use in a variety of system applications. Use of this integrated device over standard discrete implementations can result in lower component count, less PCB space and higher transceiver card yields.
