SR1316-H

Features: • 1.6mm(L)×0.8mm small size surface mount type• Thin package of 0.55mm(H) thickness• Transparent clear lens optic• High luminous Application• LCD backlighting• Keypad backlighting• Symbol backlighting• Front panel indicator lamp PinoutSpeci...

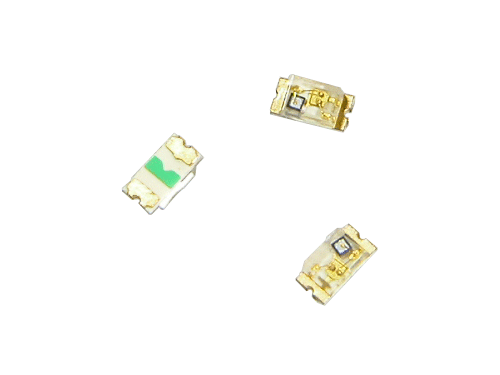

product image

SR1316-H Picture
See larger image
SeekIC No. : 004501935 Detail

SR1316-H: Features: • 1.6mm(L)×0.8mm small size surface mount type• Thin package of 0.55mm(H) thickness• Transparent clear lens optic• High luminous Application• LCD backlighting...

SR1316-H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SR1316-H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1.6mm(L)×0.8mm small size surface mount type
• Thin package of 0.55mm(H) thickness
• Transparent clear lens optic
• High luminous






Application

• LCD backlighting
• Keypad backlighting
• Symbol backlighting
• Front panel indicator lamp






Pinout






Specifications

Characteristic

Symbol

Ratings

Unit

Power Dissipation

PD

65

mW

Forward Current

IF

25

mA

*1Peak Forward Current

IFP

50

mA

Reverse Voltage

VR

4

V

Operating Temperature

Topr

-25∼80

°C

Storage Temperature

Tstg

-30∼100

°C

*2Soldering Temperature

Tsol

240 for 5 seconds

*1.Duty ratio = 1/16, Pulse width = 0.1ms
*2.Recommended soldering Temperature Profile




Description

SR1316-H are used as a small size surface mounted type for a key pad back light of mobile phone, and it also used in LCD backlight of Electric home appliances. Low power consumtion type chip LEDs are usefully applied for a wide range of backlight unit of Mobile parts, etcs.
