SPY0030A

Features: Wide operation range: 2.4V - 6.0VDual-end output modeLow distortion: THD+N = 0.55% (Typ.) (For VDD = 5.0V, Rl = 8 & Pout = 500mW)High output power: POUT = 825mW (For VDD = 5.0V, THD+N =10%, f =1.0KHz & RL = 8.0) Low standby current: 1.0APinoutSpecifications Characteristics ...

product image

SPY0030A Picture
See larger image
SeekIC No. : 004501586 Detail

SPY0030A: Features: Wide operation range: 2.4V - 6.0VDual-end output modeLow distortion: THD+N = 0.55% (Typ.) (For VDD = 5.0V, Rl = 8 & Pout = 500mW)High output power: POUT = 825mW (For VDD = 5.0V, THD+N ...

SPY0030A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SPY0030A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Wide operation range: 2.4V - 6.0V
Dual-end output mode
Low distortion: THD+N = 0.55% (Typ.) (For VDD = 5.0V, Rl = 8 & Pout = 500mW)
High output power: POUT = 825mW (For VDD = 5.0V, THD+N =10%, f =1.0KHz & RL = 8.0)
Low standby current: 1.0A

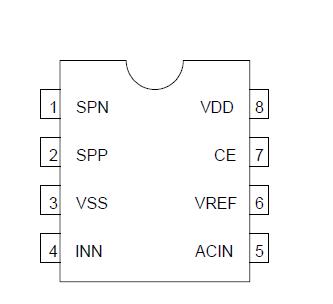

Pinout

Connection Diagram


Specifications

Characteristics
Symbol
Ratings
DC Supply Voltage
V+
< 7.0V
Input Voltage Range
VIN
-0.5V to V+ + 0.5V
Operating Temperature
TA
0 to +60
Storage Temperature
TSTO
-50 to +150
Note: Stresses beyond those given in the Absolute Maximum Rating table may cause operational errors or damage to the device. For normal operational conditions see AC/DC Electrical Characteristics.


Description

The SPY0030A is an audio driver whose gain can be adjusted by external resistor. (Maximum gain is 20) Normally, it is applied for SPC series, SPF series, SPL series and other SUNPLUS products. The SPY0030A is easily to be used in various applications and products.
