Product Details

Description

Features:

· Hot-Pluggable SFP Footprint LC Optical Transceiver
· Small Form-Factor Pluggable (SFP) MSA compatible
· Compliant with SONET OC-3 IR / SDH STM-1 (S-1.1)
· AC/AC Coupling according to MSA
· Distance up to 30 km
· Single +3.3 V Power Supply
· RoHS Compliant
· -10 to 85oC Operation: SPS-3130G
· -40 to 85oC Operation: SPS-3130AG
· Class 1 Laser International Safety Standard IEC-60825 Compliant

Application

· ATM Switches and Routers
· SONET / SDH Switch Infrastructure
· Fast Ethernet Applications

Pinout

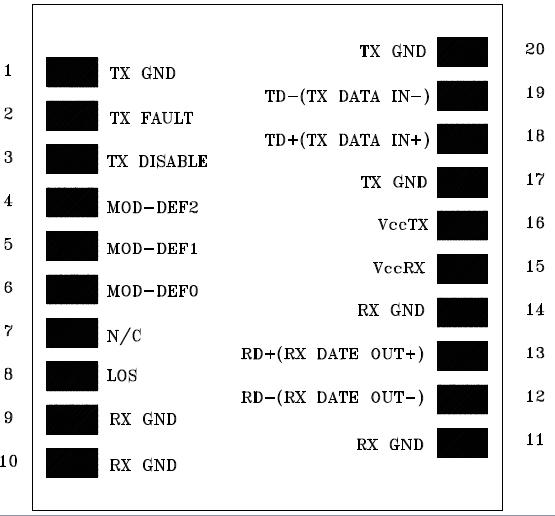

Connection Diagram

Specifications

Parameter	Symbol	Min	Max	Units	Notes
Storage Temperature	T_stg	-40	85	oC
Operating Case Temperature	T_opr	-10 -40	85 85	oC	SPS-3130G SPS-3130AG
Power Supply Voltage	V_cc	-0.5	3.6	V

Description

The SPS-3130G series single mode transceivers is small form factor pluggable module for bi-directional serial optical data communications such as SONET OC-3 / SDH STM-1 and Fast Ethernet. It is with the SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1310 nm. The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) SPS-3130G mounted in an optical header and a limiting post-amplifier IC.
