Product Details

Description

Features:

`Hot-Pluggable SFP Footprint LC Optical Transceiver
`Small Form-Factor Pluggable (SFP) MSA compatible
`Compliant with SONET OC-3 IR / SDH STM-1 (S-1.1)
`AC/AC Coupling according to MSA
`Distance up to 20 km
`Single +3.3 V Power Supply
`RoHS Compliant
`0 to 70 Operation: SPS-3120G
`-40 to 85 Operation: SPS-3120AG
`Class 1 Laser International Safety Standard IEC-60825 Compliant

Application

· ATM Switches and Routers
· SONET / SDH Switch Infrastructure
· Fast Ethernet Applications

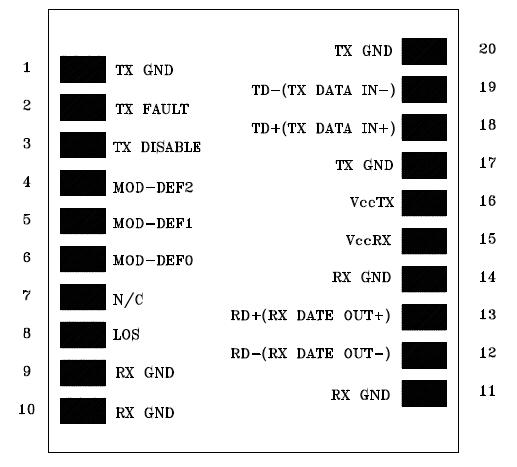

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Min	Max	Units	Notes
Storage Temperature	Tstg	-40	85
Operating Case Temperature	Topr	0 -40	70 85		SPS-3120WG SPS-3120AWG
Power Supply Voltage	Vcc	-0.5	3.6	V

Description

The SPS-3120G series single mode transceivers is small form factor pluggable module for bi-directional serial optical data communications such as SONET OC-3 / SDH STM-1 and Fast Ethernet. It is with the SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1310 nm. The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) SPS-3120G mounted in an optical header and a limiting post-amplifier IC.
