Features:

Single Chip Integrated DVD Servo and A/V Decoder
Integrated DVD/CD Servo Controller
    - Support 1x ~ 2x DVD format reading
    - Support 1x ~ 16x CD format reading
Embedded 32-bit RISC Processor without external host controller
Embedded Audio Processor supports multiple audio standards
Embedded I/O processor supports programmable interface control
Embedded TV encoder with multi-channel built-in high-speed video DAC supports various display standards
Embedded audio ADC supports stereo analog audio input
Built-in system PLL and audio PLL generate all clock sources required from single 27MHz input
Support following disc format:
    - DVD Navigation 1.0
    - DVD audio
    - SVCD (Chaoji VCD)
    - OKO disc
    - VCD 2.0/1.1/1.0
    - CDDA / HDCD
CSS/CPPM hardware
    - Built-in CSS hardware
    - Built-in CPPM C2_DCBC and C2_D/C2_D function
  Video Decoder
    - Real time MPEG2 MP@ML decoding
    - Real time MPEG1 D1 (720x480x30 /720x576x25) decoding
    - Hardware accelerated JPEG decoding
    - Advanced decoding and display control
Sub-picture Decoder
    - Advanced Sub-Picture Decoder for DVD SVCD and OKO
    - Support hardware vertical scaling
Audio Decoder
    - Flexible Programmable DSP Architecture
    - Embedded high resolution audio quality ADC
    - Support CDDA, HDCD, and DVD-Audio
    - Support LPCM, PCM, and WMA playback
    - Support MPEGI/II layer 1/2 and MPEG 2.5 playback (with optional down-mixing)
    - Support Dolby Digital AC3 5.1ch / DTS 5.1ch playback (with optional down-mixing)
    - Support Key Shift of 2 channels
    - Support equalization, reverb and special sound field
SDRAM controller
    - High Performance SDRAM controller
    - Support 16 or 32 bit operation

- Support up to 4 SDRAM devices
    - Support 16M/64M/128M/256M SDRAM devices
Graphics
    - Embedded 2D Graphics Accelerator
    - BitBlt, line, triangle drawing support
Display
    - De-interlacing of interlaced video source
    - Flexible vertical interpolation
    - Flexible horizontal interpolation with optional CIF filter
    - Powerful cropping and panning effect
    - Support YUV422, 8-bit indexed color or 16-bit direct color format
OSD
    - Multiple OSD regions with different formats
    - Support 4/16/256 indexed color
    - Support 16/24-bit direct color
    - Support x2/x3/x4 horizontal scaling
Embedded TV encoder
    - Simultaneous multi-channel output
    - Support 480i/480p/576i/576p format
    - Support 640x480 VGA / 800x600 SVGA format
    - Support CVBS output
    - Support SVideo, Component (YUV / YPbPr) or RGB output
    - Macrovision 7.01 and Macrovision AGC v1.03 cop protection
Interface
    - 27MHz crystal driver
    - 16/32-bit SDRAM interface
    - 8/16-bit ROM/FLASH/SRAM interface
    - UART ports
    - IR and VFD support
    - Video DAC analog output
    - Simultaneous 10-channel audio DAC output
    - IEC958/SPDIF digital input / output
    - Analog audio input
    - External ADC digital input interface (optional)
    - Optional ATAPI and I2S interface support
    - Optional Parallel Port interface support
Low power
    - Advanced low power design
    - Selective standby mode
    - Programmable low speed operation
Technology
    - Advanced CMOS technology
    - 216pin LQFP package
    - 3v (I/O) and 1.8v (kernel) power supplies
    - 5v I/O tolerance




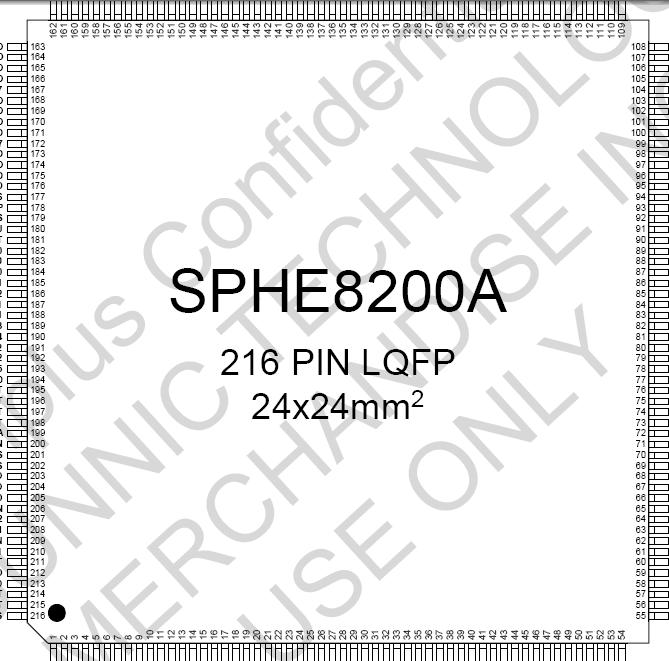

Pinout




Specifications

Parameter Symbol Value Unit
Voltage on any pin relative to Vss VIN -0.3 to 5.5 V
Voltage on VDDIO supply relative to VSS VDDIO -0.3 to 5.5 V
Voltage on VDDK supply relative to VSS VDDK -0.3 to 5.5 V
Storage Temperature TSTG -0.3 to 5.5
Soldering Temp. (Max. Time) TSOLDER 240(for 5 Sec.Max)
Short circuit current IOS 50 mA



Description

SPHE8200A is a highly integrated system-on-chip design. It includes DVD/CD servo controller, RISC processor, MPEG1/2 video decoder, programmable audio decoder, programmable peripheral controller, audio ADC and multi-format TV-encoder on a single chip.
