SPE0504

Features: ·Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)IEC 61000-4-4 (EFT) 40A (5/50ns)·Protects four I/O lines·Working voltage: 5V·Low leakage current·Low operating and clamping voltagesApplication·Cellular Handsets and Accessories·Cordless Phone·PDA·Note...

product image

SPE0504 Picture
See larger image
SeekIC No. : 004501053 Detail

SPE0504: Features: ·Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)IEC 61000-4-4 (EFT) 40A (5/50ns)·Protects four I/O lines·Working voltage: 5V·Low leakage current·Low ...

SPE0504 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SPE0504
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Transient protection for data lines to
   IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
   IEC 61000-4-4 (EFT) 40A (5/50ns)
·Protects four I/O lines
·Working voltage: 5V
·Low leakage current
·Low operating and clamping voltages


Application

·Cellular Handsets and Accessories
·Cordless Phone
·PDA
·Notebooks and Handhelds
·Portable Instrumentation
·Digital Cameras
·MP3 Player


Pinout

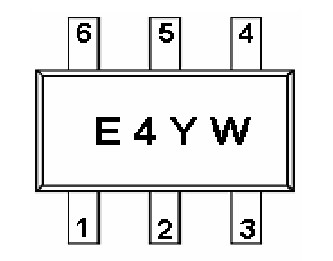

Connection Diagram


Specifications

Parameter Symbol Typical Unit
Peak Pulse Power ( tp = 8/20 s ) Ppk 250 W
Maximum Peak Pulse Current ( tp = 8/20 s ) Ipp 7 A
ESD per ICE 61000 4 2 (Air ) Vpp ±15 KV
ESD per ICE 61000 4 2 (Contact ) Vpp ±8 KV
Operating Junction Temperature TJ -55 ~ 150
Storage Temperature Range TSTG -55 ~ 150
Lead Soldering Temperature TL 260 ( 10sec )



Description

The SPE0504 are designed by TVS array that is to protect sensitive electronics from damage or latch-up due to ESD. They are designed for use in applications where board space is at a premium. SPE0504 will protect up to four line, and may be used on lines where the signal polarities swing above and below ground.

SPE0504 offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.

SPE0504 may be used to meet the immunity requirements of IEC 61000-4-2, level 4. The small SOT-23-6L package makes them ideal for use in portable electronics such as cell phones, PDA's, notebook computers, and digital cameras.
