SP720

Features: • ESD Interface Capability for HBM Standards - MIL STD 3015.7 . . . . . . . . . . . . . . . . . . . . . . . . . . . .15kV - IEC 1000-4-2, Direct Discharge,Single Input. . . . . . . . . . . . . . . . . . . . . . . . 4kV (Level 2) Two Inputs in Parallel . . . . . . . . . . . . . . . ...

product image

SP720 Picture
See larger image
SeekIC No. : 004500642 Detail

SP720: Features: • ESD Interface Capability for HBM Standards - MIL STD 3015.7 . . . . . . . . . . . . . . . . . . . . . . . . . . . .15kV - IEC 1000-4-2, Direct Discharge,Single Input. . . . . . . ....

SP720 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP720
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• ESD Interface Capability for HBM Standards
  - MIL STD 3015.7 . . . . . . . . . . . . . . . . . . . . . . . . . . . .15kV
  - IEC 1000-4-2, Direct Discharge,
    Single Input. . . . . . . . . . . . . . . . . . . . . . . . 4kV (Level 2)
    Two Inputs in Parallel . . . . . . . . . . . . . . . . 8kV (Level 4)
  - IEC 1000-4-2, Air Discharge. . . . . . . . ..  . 15kV (Level 4)
• High Peak Current Capability
   - IEC 1000-4-5 (8/20µs) . . . . . . . . . . . . . . . . . . . . . . .±3A
   - Single Pulse, 100µs Pulse Width . . . . . . . . . . . . . . .±2A
   - Single Pulse, 4µs Pulse Width . . . . . . . . . . . . . . ..  .±5A
• Designed to Provide Over-Voltage Protection
  - Single-Ended Voltage Range to . . . . . . . . . . . ..  . . .+30V
  - Differential Voltage Range to . . . . . . . . . . . . . . . . . .±15V
• Fast Switching . . . . . . . . . . . . . . . . . . . . . . . 2ns Risetime
• Low Input Leakages . . . . . . . . . . . . . . . 1nA at 25 (Typ)
• Low Input Capacitance. . . . . . . . . . . . . . . . . . . . 3pF (Typ)
• An Array of 14 SCR/Diode Pairs
• Operating Temperature Range . . . . . . . . . -40 to 105




Application

• Microprocessor/Logic Input Protection
• Data Bus Protection
• Analog Device Input Protection
• Voltage Clamp


Pinout

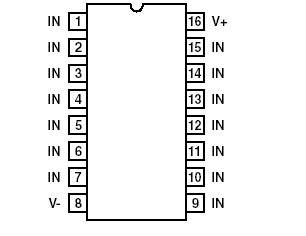

Connection Diagram


Specifications

Continuous Supply Voltage, (V+) - (V-) . . . . . . . . . . . . . . . . . . +35V
Forward Peak Current, IIN to VCC, IIN to GND
(Refer to Figure 6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±2A, 100µs
ESD Ratings and Capability (Figure 1, Table 1)
Load Dump and Reverse Battery (Note 2)
