SP705

PinoutSpecificationsVcc ...................................................... -0.3V to +6.0VAll Other Inputs (Note 1) ............. -0.3V to (Vcc+0.3V)Input Current:Vcc .................................................................... 20mAGND ......................................................

product image

SP705 Picture
See larger image
SeekIC No. : 004500621 Detail

SP705: PinoutSpecificationsVcc ...................................................... -0.3V to +6.0VAll Other Inputs (Note 1) ............. -0.3V to (Vcc+0.3V)Input Current:Vcc ...............................

SP705 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP705
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

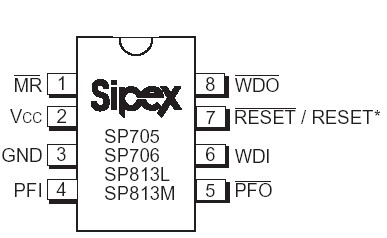

Connection Diagram




Specifications

Vcc ...................................................... -0.3V to +6.0V
All Other Inputs (Note 1) ............. -0.3V to (Vcc+0.3V)
Input Current:
Vcc .................................................................... 20mA
GND .................................................................. 20mA
Output Current (all outputs) ............................ 20mA
ESD Rating........................................................... 4KV
Continuous Power Dissipation
Plastic DIP (derate 9.09mW/°C above +70°C)727mW
SO (derate 5.88mW/°C above +70°C) .......... 471mW
Mini SO (derate 4.10mW/°C above +70°C) ....330mW
Storage Temperature Range ........... -65°C to +160°C
Lead Temperature (soldering, 10s) ............... +300°C

Specifications
# ofChannels 1
IQ (A) 60
VccMIN.(V) 1
VccMAX.(V) 5.5
ResetThreshold(V) 4.65
ResetActive low
ResetAcc(mV) 125
ResetOutputType Other





Description

The SP705-708/813L/813M series is a family of microprocessor (mP) supervisory circuits that integrate myriad components involved in discrete solutions which monitor power-supply and battery in mP and digital systems. The SP705-708/813L/813M series will significantly improve system reliability and operational efficiency when compared to solutions obtained with discrete components. The features of the SP705-708/813L/813M series include a watchdog timer, a mP reset, a Power Fail Comparator, and a manual-reset input. The SP705-708/813L/813M series is ideal for applications in automotive systems, computers, controllers, and intelligent instruments. The SP705-708/813L/813M series is an ideal solution for systems in which critical monitoring of the power supply to the mP and related digital components is demanded.
