Product Details

Description



Pinout

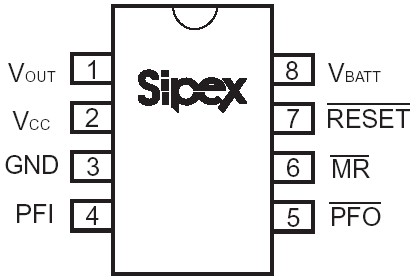

Connection Diagram


Specifications

VCC...........................................................-0.3V to 6.0V
VBATT.........................................................-0.3V to 6.0V
All Other Inputs..............................-0.3V to (VCC +0.3V)
Input Current:
VCC.....................................................................250mA
VBATT....................................................................50mA
GND.......................................................................20mA
Output Current:
VOUT.....Short-Circuit Protected for up to 10sec
All Other Inputs.....................................................20mA
Rate of Rise, VCC,VBATT...................................100V/ms
Continuous Power Dissipation...........................500mW
Storage Temperature.........................-65°C to +160°C
Lead Temperature(soldering,10sec).................+300°C
ESD Rating................................4kV Human Body Model


Description

The SP703/704 devices are microprocessor (mP) supervisory circuits that integrate a myriad of components involved in discrete solutions to monitor power-supply and battery-control functions in mP and digital systems. The series will significantly improve system reliability and operational efficiency when compared to discrete solutions. The features of the SP703/704 devices include a manual reset input, a mP reset and backup-battery switchover, and powerfailure warning. The series is ideal for applications in computers, controllers, intelligent instruments and automotive systems. All designs where it is critical to monitor the power supply to the mP and its related digital components will find the series to be an ideal solution.
