Product Details

Description



Pinout

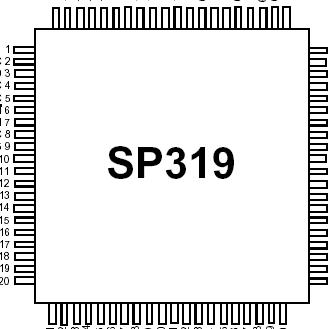

Connection Diagram




Specifications

Specifications
No. of Tx 7
No. of Rx 7
Data Rate (kbps) 10000
Vcc (V) 5
Typ. ICC(mA) 60
ESD (KV) 2
Term V.35
SupportedProtocols V.35


Specifications
No. of Tx 7
No. of Rx 7
Data Rate (kbps) 10000
Vcc (V) 5
Typ. ICC(mA) 60
ESD (KV) 2
Term V.35
SupportedProtocols V.35


VCC........................................................................................................+7V
Input Voltages
Logic.............................................................................-0.3V to (VCC+0.5V)
Drivers..........................................................................-0.3V to (VCC+0.5V)
Receivers..........................................................................±30V at 100mA
Output Voltages
Logic.............................................................................-0.3V to (VCC+0.5V)
Drivers................................................................................................±14V
Receivers......................................................................-0.3V to (VCC+0.5V)
Storage Temperature......................................................-65°C to +150°C
Power Dissipation per Package
80-pin QFP (derate 18.3mW/oC above +70oC)..............................1500mW




Description

Description

The SP319 is a complete V.35 interface transceiver offering 3 drivers and 3 receivers for V.35, and 4 drivers and 4 receivers for RS-232 (V.28). A Sipex patented charge pump allows +5V only low power operation. RS-232 drivers and receivers are specified to operate at 120kbps, all V.35 drivers and receivers operate up to 10Mbps.
