Features: The SP200 Series multichannel RS-232 line transceivers provide a variety of configurations to fit most communication needs, especially those applications where ±12V is not available.All models in this Series feature lowpower CMOS construction and Sipex proprietary onboard charge pump circuitry to generate the ±10V RS-232 voltage levels. The ability to use 0.1µF charge pump capacitors saves board space and reduces circuit cost. Different models within the Series provide different driver/receiver combinations to match any application requirement.
The SP200, SP205, SP206, SP207B, SP211and SP213 models feature a lowpower shutdown mode, which reduces power supply drain to 1µA. The WakeUp function keeps the receiv-ers active in the shutdown mode, unless disabled by the EN pin. Models with a "B" suffix are equipped with the WakeUp function.
Models in the Series are available in 28pin SO(wide) and SSOP (shrink) small outline packages.Devices can be specified for commercial (0°C to +70°C) and industrial/extended (40°C to +85°C) operating temperatures.

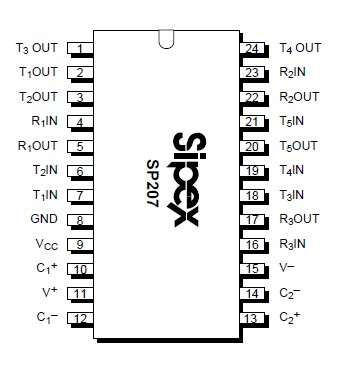

Pinout
Specifications
| No. of Tx |
5 |
| No. of Rx |
3 |
| Data Rate (kbps) |
120 |
| ESD (KV) |
2 |
| VccMIN.(V) |
4.5 |
| VccMAX.(V) |
5.5 |
| Vcc (V) |
5 |
| Int.Chrg. Pump |
Yes |
| No. ofExtCaps |
4 |
| NomCap.Value(F) |
0.1 |
| Shutdown |
|
| TTLTri-state |
No |
VCC .............................................................................................. +6V
V+ ................................................................. (VCC 0.3V) to +13.2V
V ............................................................................................. 13.2V
Input Voltages
TIN ................................................................... 0.3V to (VCC +0.3V)
RIN ........................................................................................... ±20V
Output Voltages
TOUT ........................................................ (V+, +0.3V) to (V, 0.3V)
ROUT ................................................................ 0.3V to (VCC +0.3V)
Short Circuit Duration on TOUT ......................................... Continuous
Power Dissipation
Plastic DIP .............................................................................. 375mW
(derate 7mW/°C above +70°C)
Small Outline .......................................................................... 375mW
(derate 7mW/°C above +70°C)DescriptionThe SP200 Series are multichannel RS-232 line transceivers in a variety of configurations to fit most communication needs. All models in this Series feature lowpower CMOS construction and Sipex patented (5,306,954) on-board charge pump circuitry to generate the ±10V RS-232 voltage levels, using 0.1µF charge pump capacitors to save board space and reduce circuit cost.The SP200, SP205, SP206, SP207B, SP211 and SP213 models feature a lowpower shutdown mode, which reduces power supply drain to 1µA. A WakeUp function keeps the receivers active in the shutdown mode.
SP207 Data Sheet
