SO2336-G

Features: • Colorless transparency lens type• Using a package with high heat dissipation properties, it can be driven with a large current• Wide viewing angle• External dimensions : 3.5(L)×2.8(W)×1.9mm(T) surface mount typeApplication• Backlighting• Signal indic...

product image

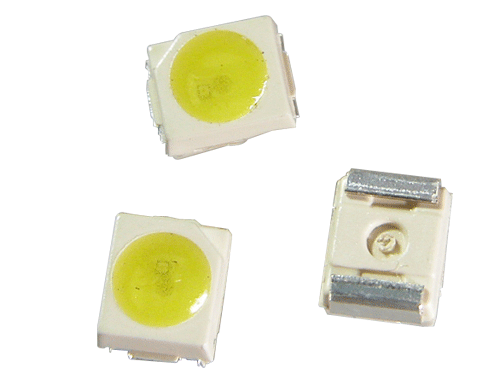

SO2336-G Picture
See larger image
SeekIC No. : 004499999 Detail

SO2336-G: Features: • Colorless transparency lens type• Using a package with high heat dissipation properties, it can be driven with a large current• Wide viewing angle• External dimen...

SO2336-G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SO2336-G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Colorless transparency lens type
• Using a package with high heat dissipation properties, it can be driven with a large current
• Wide viewing angle
• External dimensions : 3.5(L)×2.8(W)×1.9mm(T) surface mount type




Application

• Backlighting
• Signal indicator
• Symbol backlighting
• Front panel indicator




Pinout






Specifications

Characteristic
Symbol
Rating
Unit
Power dissipation

Forward current

*1Peak forward current

Reverse voltage

Operating temperature range

Storage temperature range

*2Soldering temperature
PD

IF

IFP

VR

Topr

Tstg

Tsol
70

30

50

5

-40∼100

-40∼110

240 for 10 seconds
mW

mA

mA

V





*1.Duty ratio = 1/16, Pulse width = 0.1ms
*2. Recommended reflow soldering temperature profile - Preheating 150 to 185 within 120 seconds soldering 240 within 10 seconds Gradual cooling (Avoid quenching)




Description

* SMD(Surface Mount Device) Type ? SO2336-G makes good use of space. Continual development of brightness ? It has been become equal in Iv(mcd) as higher as Lamp types. More powerful ESD Protection with more competitive price range Adopting silicon resin- More flexible resin than the existing epoxy resin It minimizes chip stress when it was being made or it has been used. And it also minimizes LED chip Stress which was caused by thermal inflation when it light a lamp.
