SN75189A

Features: Input Resistance...3 kΩ to 7 kΩInput Signal Range... ±30 VOperate From Single 5-V SupplyBuilt-In Input Hysteresis (Double Thresholds)Response Control that Provides:Input Threshold ShiftingInput Noise FilteringMeet or Exceed the Requirements ofTIA/EIA-232-F and ITU Recommendat...

product image

SN75189A Picture
See larger image
SeekIC No. : 004499627 Detail

SN75189A: Features: Input Resistance...3 kΩ to 7 kΩInput Signal Range... ±30 VOperate From Single 5-V SupplyBuilt-In Input Hysteresis (Double Thresholds)Response Control that Provides:Input Thresh...

SN75189A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN75189A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Input Resistance...3 kΩ to 7 kΩ
 Input Signal Range... ±30 V
 Operate From Single 5-V Supply
 Built-In Input Hysteresis (Double Thresholds)
 Response Control that Provides:
 Input Threshold Shifting
 Input Noise Filtering
 Meet or Exceed the Requirements of
 TIA/EIA-232-F and ITU Recommendation V.28
 Fully Interchangeable With MotorolaMC1489 and MC1489A


Pinout

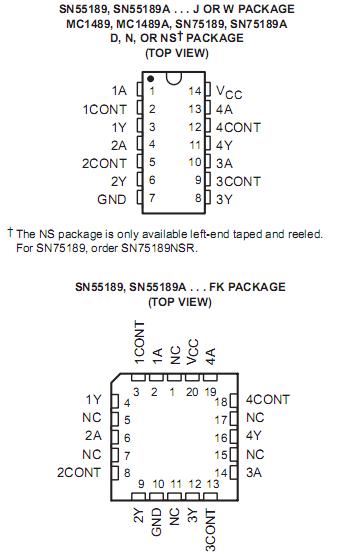

Connection Diagram


Specifications

Supply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±30 V
Output voltage, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 20 mA
Continuous total power dissipation . . . . . . . .  See Dissipation Rating Table
Operating free-air temperature range, TA: SN55189,   . .  . . 55°C to 125°C
MC1489, MC1489A, SN75189, SN75189A . . . . . . .  . .  . .  . .  . . . 0°C to 70°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Case temperature for 60 seconds, FK package . . . . . . . . . . . . . . . . .  . 260°C
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: J or W package . . . 300°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D, N, or NS package . 260°C


Description

These devices SN75189A are monolithic low-power Schottky quadruple line receivers designed to satisfy the requirements of the standard interface between data-terminal equipment and data-communica- tion equipment as defined by TIA/EIA-232-F. A separate response-control (CONT) terminal is provided for each receiver. A resistor or a resistor and bias-voltage source can be connected between this terminal and ground to shift the input threshold levels. An external capacitor can be connected between this terminal and ground to provide input noise filtering.

The SN55189 and SN55189A are characterized for operation over the full military temperature range of 55°C to 125°C. The MC1489,
MC1489A, SN75189, and SN75189A are characterized for operation from 0°C to 70°C.
