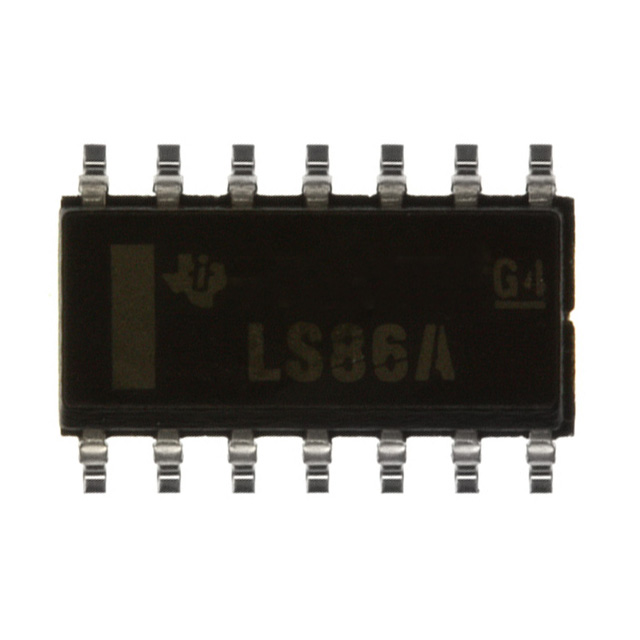

SN74LS86ADRG4: Gates (AND / NAND / OR / NOR) Quad 2 input exclusive OR gates

SN74LS86ADRG4 Data Sheet

US $ .2~.34 / Piece | Get Latest Price

Part Number:: SN74LS86ADRG4
Mfg:: Texas Instruments
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.34
$.27
$.23
$.2

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SN7400 evaluate
Features: *Package Options Include Plastic Small-Outline (D, NS, PS), Shrink Small-Outline (DB), a...
SN7400D evaluate
US $.55 - .79 / Piece

Gates (AND / NAND / OR / NOR) Quad 2-input Positive-NAND gates
SN7400DE4 evaluate
US $.51 - .79 / Piece

Gates (AND / NAND / OR / NOR) Quad 2-input Positive-NAND gates

Product Details

Quick Details

Product :	XOR	Logic Family :	LS
Number of Gates :	4	Number of Lines (Input / Output) :	2 / 1
High Level Output Current :	- 0.4 mA	Low Level Output Current :	8 mA
Propagation Delay Time :	30 ns	Supply Voltage - Max :	5.25 V
Supply Voltage - Min :	4.75 V	Maximum Operating Temperature :	+ 70 C
Mounting Style :	SMD/SMT	Package / Case :	SOIC-14
Packaging :	Reel

Description

Number of Gates : 4
Mounting Style : SMD/SMT
Packaging : Reel
Number of Lines (Input / Output) : 2 / 1
Package / Case : SOIC-14
Low Level Output Current : 8 mA
Product : XOR
Maximum Operating Temperature : + 70 C
High Level Output Current : - 0.4 mA
Propagation Delay Time : 30 ns
Supply Voltage - Max : 5.25 V
Supply Voltage - Min : 4.75 V
Logic Family : LS

Parameters:

Technical/Catalog Information	SN74LS86ADRG4
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Circuits	4 - Quad
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Logic Type	XOR (Exclusive OR)
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Inputs	2
Current - Output High, Low	800A, 16mA
Supply Voltage	4.75 V ~ 5.25 V
Operating Temperature	0°C ~ 70°C
Voltage - Supply	4.75 V ~ 5.25 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74LS86ADRG4 SN74LS86ADRG4
