SN74LS164N

Counter Type :
Output Type :
Counting Sequence : Serial to Parallel
Packaging : Tube
Number of Circuits : 2
Logic Family : 74LS
Logic Type : Bipolar
Maximum Operating Temperature : + 70 C
Minimum Operating Temperature : 0 C
Package / Case : PDIP-14
Number of Input Lines : 2 / 3
Propagation Delay Time : 32 ns


Features:

• Typical Shift Frequency of 35 MHz
• Asynchronous Master Reset
• Gated Serial Data Input
• Fully Synchronous Data Transfers
• Input Clamp Diodes Limit High Speed Termination Effects
• ESD > 3500 Volts

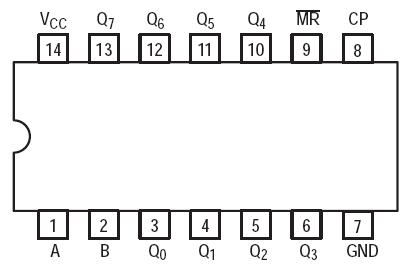

Pinout




Description

The SN74LS164N is a high speed 8-Bit Serial-In Parallel-Out Shift Register. Serial data is entered through a 2-Input AND gate synchronous with the LOW to HIGH transition of the clock. The device features an asynchronous Master Reset which clears the register setting all outputs LOW independent of the clock. It utilizes the Schottky diode clamped process to achieve high speeds and is fully compatible with all ON Semiconductor TTL products.

Parameters:

Technical/Catalog Information	SN74LS164N
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Logic Type	Shift Register
Function	Serial to Parallel
Number of Elements	1 - Single
Number of Bits per Element	8
Output Type	Standard
Voltage - Supply	4.75 V ~ 5.25 V
Mounting Type	Through Hole
Package / Case	14-DIP (300 mil)
Packaging	Tube
Operating Temperature	0°C ~ 70°C
Drawing Number	296; 4040049; N; 14, 16, 18, 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74LS164N SN74LS164N 296 1647 5 ND 29616475ND 296-1647-5
