SN74LS153N

Number of Bits :
Product : Selector / Multiplexer
Packaging : Tube
Mounting Style : Through Hole
Package / Case : PDIP-16
Supply Voltage - Max : 5.25 V
Supply Voltage - Min : 4.75 V
Maximum Operating Temperature : + 70 C
Number of Lines (Input / Output) : 4 / 1
Logic Family : LS
Propagation Delay Time : 26 ns at 5 V


Features:

• Multifunction Capability
• Non-Inverting Outputs
• Separate Enable for Each Multiplexer
• Input Clamp Diodes Limit High Speed Termination Effects

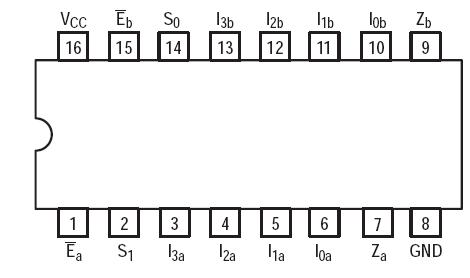

Pinout




Description

The LSTTL/MSI SN74LS153 is a very high speed Dual 4-Input Multiplexer with common select inputs and individual enable inputs for each section. SN74LS153N can select two bits of data from four sources. The two buffered outputs present data in the true (non-inverted) form. In addition to multiplexer operation, the LS153 can generate any two functions of three variables. The LS153 is fabricated with the Schottky barrier diode process for high speed and is completely compatible with all ON Semiconductor TTL families.

Parameters:

Technical/Catalog Information	SN74LS153N
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Circuit	2 x 4:1
Independent Circuits	1
Mounting Type	Through Hole
Current - Output High, Low	400A, 8mA
Package / Case	16-DIP (300 mil)
Packaging	Tube
Type	Data Selector/Multiplexer
Voltage Supply Source	Single Supply
Operating Temperature	0°C ~ 70°C
Voltage - Supply	4.75 V ~ 5.25 V
Drawing Number	296; 4040049; N; 14, 16, 18, 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74LS153N SN74LS153N 296 3654 5 ND 29636545ND 296-3654-5
