SN74LS08N, US $ .24-.35 , Texas Instruments, SN74LS08N DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 00434759 Detail

SN74LS08N: Gates (AND / NAND / OR / NOR) Quad 2-Input.

SN74LS08N Data Sheet

US $ .24~.35 / Piece | Get Latest Price

Part Number:: SN74LS08N
Mfg:: Texas Instruments
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.35
$.32
$.27
$.24

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/9/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SN7400 evaluate
Features: *Package Options Include Plastic Small-Outline (D, NS, PS), Shrink Small-Outline (DB), a...
SN7400D evaluate
US $.55 - .79 / Piece

Gates (AND / NAND / OR / NOR) Quad 2-input Positive-NAND gates
SN7400DE4 evaluate
US $.51 - .79 / Piece

Gates (AND / NAND / OR / NOR) Quad 2-input Positive-NAND gates

Product Details

Quick Details

Product :	AND	Logic Family :	74LS
Number of Gates :	4	Number of Lines (Input / Output) :	2 / 1
High Level Output Current :	- 0.4 mA	Low Level Output Current :	8 mA
Propagation Delay Time :	20 ns	Supply Voltage - Max :	5.25 V
Supply Voltage - Min :	4.75 V	Maximum Operating Temperature :	+ 70 C
Mounting Style :	Through Hole	Package / Case :	PDIP-14
Packaging :	Tube

Description

Product : AND
Number of Gates : 4
Number of Lines (Input / Output) : 2 / 1
Low Level Output Current : 8 mA
Packaging : Tube
Maximum Operating Temperature : + 70 C
Mounting Style : Through Hole
Package / Case : PDIP-14
High Level Output Current : - 0.4 mA
Propagation Delay Time : 20 ns
Supply Voltage - Max : 5.25 V
Supply Voltage - Min : 4.75 V
Logic Family : 74LS

Pinout

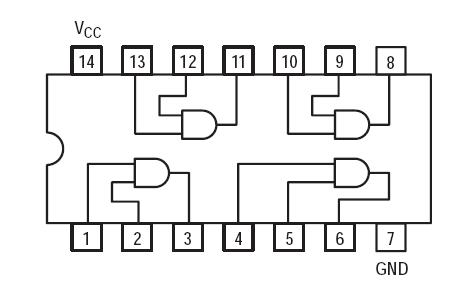

Connection Diagram

Specifications

Symbol	Parameter	Min	Typ	Max	Unit
V_CC	Supply Voltage	4.75	5.0	5.25	V
T_A	Operating Ambient Temperature Range	0	25	70	°C
I_OH	Output Current - High			0.	mA
I_OL	Output Current - Low			8.0	mA

Parameters:

Technical/Catalog Information	SN74LS08N
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Circuits	4 - Quad
Package / Case	14-DIP (300 mil)
Logic Type	AND Gate
Packaging	Tube
Mounting Type	Through Hole
Number of Inputs	2
Current - Output High, Low	800A, 16mA
Supply Voltage	4.75 V ~ 5.25 V
Operating Temperature	0°C ~ 70°C
Voltage - Supply	4.75 V ~ 5.25 V
Drawing Number	296; 4040049; N; 14, 16, 18, 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74LS08N SN74LS08N 296 1633 5 ND 29616335ND 296-1633-5
