SN74AHCT74D

Mounting Style : SMD/SMT
Supply Voltage - Max : 5.5 V
Number of Circuits : 2
Input Type : Single-Ended
Maximum Operating Temperature : + 85 C
Packaging : Tube
Logic Type : D-Type Flip-Flop
Polarity : Inverting/Non-Inverting
Output Type : Differential
Low Level Output Current : 8 mA
Package / Case : SOIC-14
Logic Family : 74AH
High Level Output Current : - 8 mA
Propagation Delay Time : 8.8 ns


Features:

` Inputs Are TTL-Voltage Compatible
` Latch-Up Performance Exceeds 250 mA Per ESD 17
` ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)

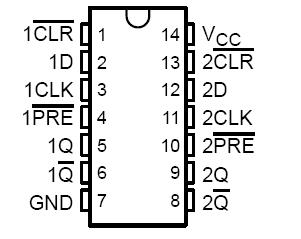

Pinout




Specifications

Supply voltage range, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, V_I (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Output voltage range, V_O (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to V_CC + 0.5 V
Input clamp current, I_IK (V_I < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 mA
Output clamp current, I_OK (V_O < 0 or V_O > V_CC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Continuous output current, I_O (V_O = 0 to V_CC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25 mA
Continuous current through V_CC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±50 mA
Package thermal impedance, JA (see Note 2): D package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86°C/W
(see Note 2): DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96°C/W
(see Note 2): DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127°C/W
(see Note 2): N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80°C/W
(see Note 2): NS package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76°C/W
(see Note 2): PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113°C/W
(see Note 3): RGY package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
2. The package thermal impedance is calculated in accordance with JESD 51-7.
3. The package thermal impedance is calculated in accordance with JESD 51-5.


Description

The 'AHCT74 dual positive-edge-triggered devices are D-type flip-flops.

A low level at the preset (PRE) or clear (CLR) inputs sets or resets the outputs, regardless of the levels of the other inputs. When PRE and CLR are inactive (high), data at the data (D) input meeting the setup time requirements is transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the D input of  'AHCT74  can be changed without affecting the levels at the outputs.

Parameters:

Technical/Catalog Information	SN74AHCT74D
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Function	Set and Reset
Number of Bits per Element	1
Number of Elements	2 - Dual
Current - Output High, Low	8mA, 8mA
Output Type	Differential
Trigger Type	Positive Edge
Type	D-Type
Packaging	Tube
Operating Temperature	-40°C ~ 85°C
Delay Time - Propagation	1ns
Frequency - Clock	140MHz
Voltage - Supply	4.5 V ~ 5.5 V
Drawing Number	296; 4040047-3; D; 14
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74AHCT74D SN74AHCT74D 296 4769 5 ND 29647695ND 296-4769-5
