SN28835

Features: • NTSC-Timing Operation• Solid-State Reliability• Color and Monochrome Operation• Four Selectable-Antiblooming Modes• Variable-Integration-Time Option• Surface-Mount Package• Clamp-Pulse Select Option• Horizontal and Vertical Resets for Ext...

product image

SN28835 Picture
See larger image
SeekIC No. : 004496094 Detail

SN28835: Features: • NTSC-Timing Operation• Solid-State Reliability• Color and Monochrome Operation• Four Selectable-Antiblooming Modes• Variable-Integration-Time Option• ...

SN28835 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN28835
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• NTSC-Timing Operation
• Solid-State Reliability
• Color and Monochrome Operation
• Four Selectable-Antiblooming Modes
• Variable-Integration-Time Option
• Surface-Mount Package
• Clamp-Pulse Select Option
• Horizontal and Vertical Resets for External Synchronization


Pinout

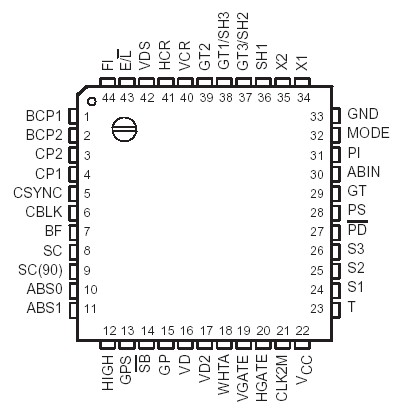

Connection Diagram


Specifications

Supply voltage range, VCC (see Note 1) . . . . . . . . . . .  . . . .. . . . . 0.3 V to 7 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . ..  . 0.3 V to VCC + 0.3 V
Output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to VCC + 0.3 V
Continuous total power dissipation at (or below) TA = 25. . . . . . . . . . 300 mW
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . 20 to 45
Storage temperature range, TSTG. . . . . . . . . . . . . . . . . . . . . . . . . 55to 125
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . .. . . . 260


Description

The SN28835 is a monolithic integrated circuit designed to supply timing signals for the Texas Instruments (TIE) 8-mm TC242/TC244 color and TC243/TC245 monochrome CCD image sensors.The SN28835 supplies both CCD-drive signals
and NTSC-television synchronization signals at standard video rates. It requires a single 5-V supply voltage and a 14.318-MHz crystal-oscillator input. The SN28835 provides the user with several options including multiple antiblooming modes, variable-integration time,external synchronization, and delayed horizontal transfer.

The SN28835 is designed to drive the CCD image sensor through intermediary level-shifting devices such as the TI TMS3473B parallel driver and the SN28846 serial driver. It also supplies sample-and-hold signals for the TI TL1593 3-channel sample-and-hold circuit and multiplex signals for the TI TL1051 video preprocessor. The SN28835 NTSC synchronization-signal outputs include composite sync, composite blank, clamp, subcarrier,subcarrier delayed by 90 degrees, and burst flag.

The SN28835 is supplied in a 44-pin plastic flat package and is characterized for operation from 20°C to 45°C.
