SMS47

Features: ·Operational from any of four Voltage Monitoring Inputs·Programmable Power-up Cascade Sequencing·Programmability allows monitoring any voltage between 0.6V and 5.6V with no external components·Programmable 5mV steps in the low range·Programmable Watchdog Timer·Programmable Reset Pulse Wi...

product image

SMS47 Picture
See larger image
SeekIC No. : 004495569 Detail

SMS47: Features: ·Operational from any of four Voltage Monitoring Inputs·Programmable Power-up Cascade Sequencing·Programmability allows monitoring any voltage between 0.6V and 5.6V with no external compon...

SMS47 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SMS47
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Operational from any of four Voltage Monitoring Inputs
·Programmable Power-up Cascade Sequencing
·Programmability allows monitoring any voltage between 0.6V and 5.6V with no external components
·Programmable 5mV steps in the low range
·Programmable Watchdog Timer
·Programmable Reset Pulse Width
·Programmable Nonvolatile Combinatorial Logic for generation of Reset
·Fault Status Register


Application

·Desktop/Notebook/Tablet Computers
·Multi-voltage Systems
·Telecom/Network Servers
·Portable Battery-powered Equipment
·Set-top Boxes
·Data-storage Equipment


Pinout

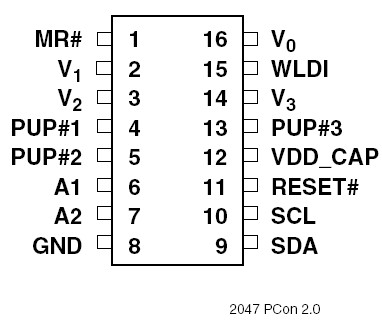

Connection Diagram


Specifications

Temperature Under Bias ...................... 55°C to 125°C
Storage Temperature .......................... 65°C to 150°C
Lead Solder Temperature (10s) ........................... 300 °C
Terminal Voltage with Respect to GND:
V0, V1, V2, and V3 ..................................... 0.3V to 6.0V
All Others ................................................... 0.3V to 6.0V
Junction Temperature.............................................150°C
ESD Rating per JEDEC..............................................2000V
Latch-Up testing per JEDEC..................................±100mA
*Note - Stresses beyond the listed Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions outside those listed in the operational sections of this specification is not implied. Exposure to any absolute maximum rating for extended periods may affect device performance and reliability.


Description

The SMS47 is a nonvolatile user-programmable voltage supply cascade sequencer and supervisory circuit designed specifically for advanced systems that need to monitor multiple voltages.

The SMS47 can monitor four separate voltages without the need of any external voltage divider circuitry unlike other devices that need factorytrimmed threshold voltages and external components to accommodate different supply voltages and tolerances. The SMS47 can also be used to enable DC/DC converters or LDOs to provide a closed loop cascading of the supplies during power-up.

The SMS47 watchdog timer has a user programmable time-out period and it can be placed in an idle mode for system initialization or system debug. All of the functions are user accessible through an industry standard I2C 2-wire serial interface. Programming of configuration, control and calibration values by the user is simplified with the SMX3200 programming adapter and Windows GUI software obtainable from Summit Microelectronics.
