Capacitance
:
Polarity
: Unidirectional
Channels
: 4 Channels
Minimum Operating Temperature
: - 55 C
Packaging
: Reel
Maximum Operating Temperature
: + 150 C
Breakdown Voltage
: 6 V
Operating Voltage
: 5 V
Package / Case
: SC-74-6
Series
: SMSxxT1
Clamping Voltage
: 15.5 V
Features: •SC-74 Package Allows Four Separate Unidirectional Configurations
• Peak Power 350 Watts, 8 x 20 S
• ESD Rating of Class N (Exceeding 25 kV) per the Human Body Model
• ESD Rating:
IEC 6100042 (ESD) 15 kV (air) 8 kV (contact)
IEC 6100044 (EFT) 40 Amps (5/50 ns)
IEC 6100045 (lightning) 23 Amps (8/20 s)
• UL Flammability Rating of 94V0
ApplicationHand Held Portable Applications such as Cell Phones, Pagers, Notebooks and Notebook Computers

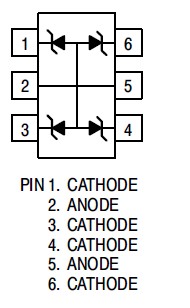

Pinout
Specifications
|
Rating |
Symbol |
Value |
Unit |
Peak Power Dissipation
8 x 20S @ TA = 25°C (Note 1) |
PPK |
350 |
W |
Total Power Dissipation on FR5 Board
@ TA = 25°C (Note 2) Derate Above 25°C |
PD |
225
1.8 |
mW
mW/°C |
| Thermal Resistance, JunctiontoAmbient |
RJA |
556 |
°C/W |
| Junction and Storage Temperature Range |
TJ,Tstg |
55 to +150 |
°C |
Lead Solder Temperature
Maximum 10 Seconds Duration |
TL |
260 |
°C |
1. Nonrepetitive current pulse 8 x 20 S exponential decay waveform
2. FR5 = 1.0 x 0.75 x 0.62 in.DescriptionThis quad monolithic silicon voltage suppressor is designed for applications requiring transient overvoltage protection capability. SMS05T1 is intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems and other applications. This SMS05T1 quad device provides superior surge protection over current quad Zener MMQA series by providing up to 350 watts peak power.
Parameters: | Technical/Catalog Information | SMS05T1 |
| Vendor | ON Semiconductor (VA) |
| Category | Circuit Protection |
| Package / Case | SC-74-6, SOT-457, SMT6, SSOT-6, 6-TSOP |
| Packaging | Cut Tape (CT) |
| Polarization | 4 Channel Array - Unidirectional |
| Power (Watts) | 350W |
| Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown | 6V |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | SMS05T1
SMS05T1
SMS05T1OSCT ND
SMS05T1OSCTND
SMS05T1OSCT
|
SMS05T1 Data Sheet
