SMH4044

Features: IPMI Implementation IPMB Interface Software Controlled Power-Up/-Down Status Reporting: 5V, 3.3V, V1, V2, Healthy, Signal Valid, Reset 2k-Bit E2PROM MemoryFull Voltage Control for Hot Swap Applications Detect, Monitors and Controls up to 4 independent supplies14V High Side Driver Generat...

product image

SMH4044 Picture
See larger image
SeekIC No. : 004495044 Detail

SMH4044: Features: IPMI Implementation IPMB Interface Software Controlled Power-Up/-Down Status Reporting: 5V, 3.3V, V1, V2, Healthy, Signal Valid, Reset 2k-Bit E2PROM MemoryFull Voltage Control for Hot Swap...

SMH4044 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SMH4044
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 IPMI Implementation
    IPMB Interface
    Software Controlled Power-Up/-Down
    Status Reporting: 5V, 3.3V, V1, V2, Healthy, Signal Valid, Reset
    2k-Bit E2PROM Memory
 Full Voltage Control for Hot Swap Applications
    Detect, Monitors and Controls up to 4 independent supplies
 14V High Side Driver Generation Allows use of Low On Resistance N-Channel FETs
Under-Voltage Lockout
 Electronic Circuit Breakers
    Programmable Over-current Levels
 Card Insertion Detection
Card Voltage Sequencing
 Flexible Reset Control
    Low Voltage Resets
    Host Reset Filtering
    Soft Reset
 Adjustable Power On Slew Rate


Pinout

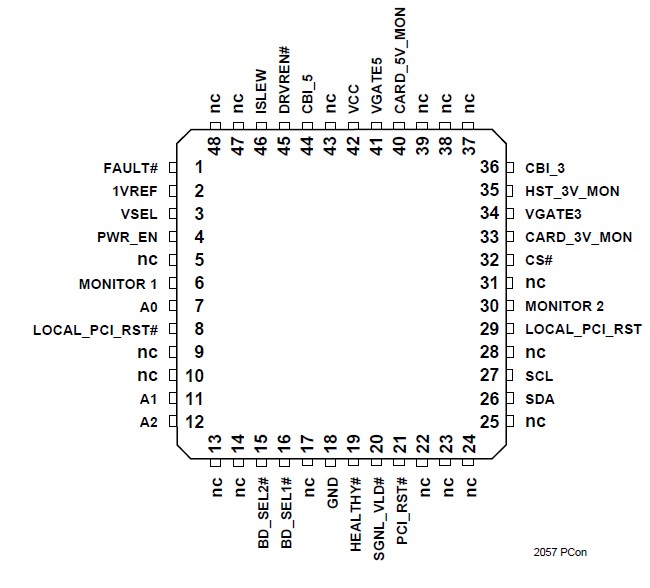

Connection Diagram


Specifications

Temperature Under Bias ................................................................. 55°C to 125°C
Storage Temperature ...................................................................... 65°C to 150°C
Lead Solder Temperature (10 secs) .............................................................. 300 °C
Terminal Voltage with Respect to GND:
                        V0, V1, V2, and V3 ....................................................... 0.3V to 6.0V
                        All Others ..................................................................... 0.3V to 6.0V


Description

The SMH4044 is a fully integrated hot swap controller that provides complete power control for add-in cards ranging in use for basic hot swap systems to high availability systems. It detects proper insertion of the card and senses valid supply voltage levels at the backplane. Utilizing external low on-resistance N-channel MOSFETs, card power is ramped by two high-side driver outputs that are slew-rate limited at 250V/s.

The SMH4044 continuously monitors the host supplies, the add-in card supplies and the add-in card currents. If the SMH4044 detects the current is higher than the programmed value it will shut down the MOSFETs and issue a fault status to the host.

The internal 256 × 8 E2PROM can be used as configuration memory for the individual card or as general purpose memory.

SMH4044 Programming of configuration, control and calibration values by the user can be simplified with the interface adapter and Windows GUI software obtainable from Summit Microelectronics.
