Mounting Type: Surface Mount
Voltage - Breakdown: 6V
Voltage - Reverse Standoff (Typ): 5V
Power (Watts): 500W
Polarization: 2 Channel Array - Bidirectional
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Packaging: Cut Tape (CT)
Manufacturer: Microsemi Commercial Components Group
Series: TVS Array™
Supplier Device Package: SO-8
Features: · Protects up to 2 Bidirectional lines
· Surge protection Per IEC 1000-4-2, IEC 1000-4-4 )
· Provides electrically isolated protection
· SO-8 Packaging
· Low capacitance of 25 Pf per line pair

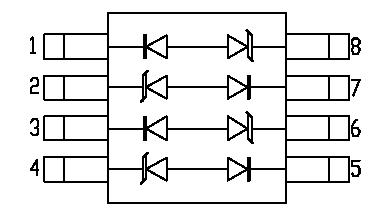

Pinout
Specifications` Operating Temperatures: -550 to +1500
` Storage Temperature: -550 to +1500
` Peak Pulse Power: 500 Watts (8/20 sec, Figure 1)
` Pulse Repetition Rate: <.01%DescriptionThis TRANSIENT VOLTAGE SUPPRESSOR (TVS) array SM8LC05 is packaged in an SO-8 configuration giving protection to 2 Bidirectional data or interface lines. It is designed for use in applications where protection is required at the board level from voltage transients caused by electrostatic discharge (ESD) as defined in IEC 1000-4-2, electrical fast transients (EFT) per IEC 1000-4-4 and effects of secondary lighting.
These TVS arrays SM8LC05 have a peak power rating of 500 watts for an 8/20msec pulse. This array is suitable for protection of sensitive circuitry consisting of TTL, CMOS DRAM's, SRAM's, HCMOS, HSIC microprocessors, and I/O transceivers. The SM8LCXX product provides board level protection from static electricity and other induced voltage surges that can damage sensitive circuitry.
Parameters: | Technical/Catalog Information | SM8LC05 |
| Vendor | Microsemi |
| Category | Circuit Protection |
| Package / Case | 8-SOIC |
| Packaging | Tape & Reel (TR) |
| Polarization | 2 Channel Array - Bidirectional |
| Power (Watts) | 500W |
| Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown | 6V |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | SM8LC05
SM8LC05
SM8LC05MSTR ND
SM8LC05MSTRND
SM8LC05MSTR
|
SM8LC05 Data Sheet
