Features:

·Working voltage: 3.0V ~ 3.6V For L Version
4.5V ~ 5.5V For C Version
·General 8052 family compatible
·12 clocks per machine cycle
·16K byte on chip program flash
·1024 byte on-chip data RAM
·Three 16 bit Timers/Counters
·One Watch Dog Timer
·Four 8-bit I/O ports for PDIP package
·Four 8-bit I/O ports + one 4-bit I/O ports for PLCC or QFP package
·Full duplex serial channel
·Bit operation instruction
·Industrial Level
·8-bit Unsigned Division
·8-bit Unsigned Multiply
·BCD arithmetic
·Direct Addressing
·Indirect Addressing
·Nested Interrupt
·Two priority level interrupt
·A serial I/O port
·Power save modes: Idle mode and Power down mode
·Code protection function
·Low EMI (inhibit ALE)
·Bank mapping direct addressing mode for access on-chip RAM
·5 channel SPWM function with P1.3 ~ P1.7


Pinout

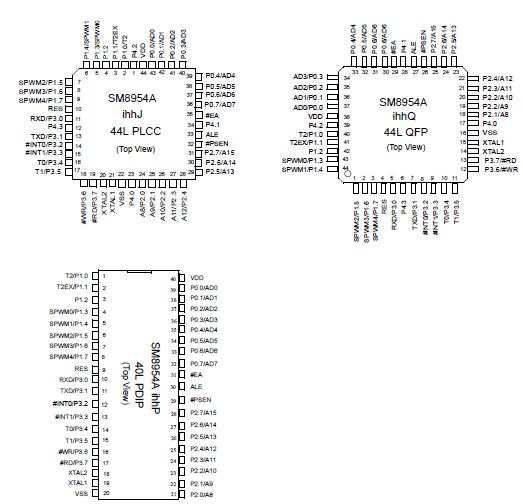

Connection Diagram


Description

The SM8954A series product is an 8 - bit single chip micro controller with 16KB on-chip flash and 1K byte RAM embedded. It is a derivative of the 8052 micro controller family. It has 5-channel SPWM build-in. User can access on-chip expanded RAM with easier and faster way by its 'bank mapping direct addressing mode' scheme. With its hardware features and powerful instruction set, it's straight forward to make SM8954A a versatile and cost effective controller for those applications which demand up to 16 I/ O pins for PDIP package or up to 36 I/O pins for PLCC/QFP package, or applications which need up to 16K byte flash memory for program data.To program the on-chip flash memory, a commercial writer is available to do it in parallel programming method.
