Product Details

Description



Features:

• ROM capacity:
  61,440 * 8-bits (SM6004)
  126,976 * 8-bits (SM6006)
• RAM capacity:
  2,048 * 8-bits (SM6004)
  3,584 * 8-bits (SM6006)
• External memory expansion function
  On chip bus controller for external memory
  Bus multiplexing/nonmultiplexing selection
  Bus width selection
  Auto wait control
• CPU
  General purpose registers 16-bit * 16
  62 basic instructions (bit manipulation instructions Suitable for controlling, bit transfer instructions, bit branch instructions, high speed multiplication and division instructions (16-bits * 16-bits, 16-bits ÷ 16-bits, 32-bits ÷ 16-bits))
• 10 addressing modes
  16M of address space
  An interrupt request starts a high performance automatic data transfer (DTS). Appropriate settings of interrupts and registers enable hardware automatic data transfer. Various functions can be operated successively and the resultant data can also successively be stored.
  System clock cycle 0.133 µs (MIN.) (VDD = 4.5 V to 5.5 V at 30 MHz main clock cycle)
  0.2 µs (MIN.) (VDD = 2.5 V to 5.5 V at 20 MHz main clock cycle)
  Selectable system clocks divided by 2 up to 16 main clocks for low power operation.
• 27 total software interrupts
  24 maskable interrupts (external 4, internal 20)
  3 nonmaskable interrupts
  A nonmaskable interrupt, when used in conjunction with BST instruction, can trigger the software reset
• Built-in main clock oscillator for system clock
• Standby function: Halt mode/stop mode
• I/O ports * 88/specific purpose function pin * 3
  Input ports * 8 (also serve as A/D input)
  I/O ports * 80 (also serve as function pins)
  Specific purpose function pins * 3 (D/A output pin * 2, bus mode selection pin * 1)
• Timer
  16-bit multifunction timers * 6
  5-stage capture and 2-stage compare type * 1
  1-stage compare type * 2
  2-stage capture type (or capture and compare) * 2
  2-stage compare, PWM output type * 1
• Watchdog timer (overrun detect timer): 8-bit * 1
• Serial interface
  Selectable universal asynchronous receiver transmitter (UART)/serial I/O interface (SIO) * 2
  Serial I/O interface (SIO) * 1
• A/D converter
  Resolution 10-bits
  8 channels
  Auto start by triggering with timer output
• D/A converter 8-bit * 2
• High precision PWM outputs
  14-bit * 2
  Bit modulated PWM
• Real time outputs 4-bit * 2
• Supply voltages
  4.5 V to 5.5 V (main clock at 30 MHz)
  2.5 V to 5.5 V (main clock at 20 MHz)
• Packages
  100-pin LQFP (LQFP100-P-1414)
  100-pin QFP (QFP100-P-1420)

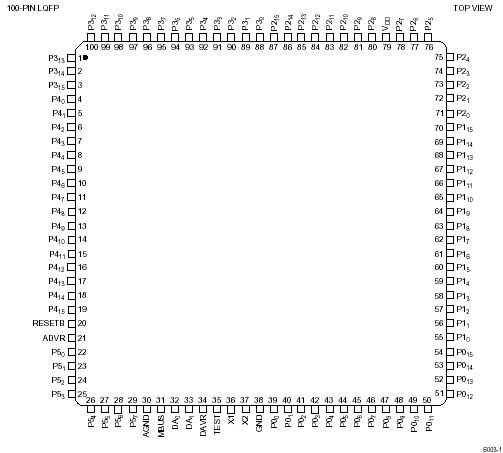

Pinout

Connection Diagram


Description

    The SM6004/SM6006 are single-bit single-chip microcomputersincorporating a 16-bit CPU core, ROM, RAM, timer unit, watchdogtimer, serial interface (UART, SIO), PWM output, real time output,A/D converter, D/A converter and bus controller.
