SM5964

Features: ·Working voltage: 4.5V through 5.5V·General 8052 family compatible·12 clocks per machine cycle·64K byte on chip flash memory with In-System·Programming (ISP) capability·1024 byte on chip data RAM·Three 16 bit Timers/Counters·One Watch Dog Timer·Four 8-bit I/O ports for PDIP package·Four ...

product image

SM5964 Picture
See larger image
SeekIC No. : 004493925 Detail

SM5964: Features: ·Working voltage: 4.5V through 5.5V·General 8052 family compatible·12 clocks per machine cycle·64K byte on chip flash memory with In-System·Programming (ISP) capability·1024 byte on chip d...

SM5964 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SM5964
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Working voltage: 4.5V through 5.5V
·General 8052 family compatible
·12 clocks per machine cycle
·64K byte on chip flash memory with In-System
·Programming (ISP) capability
·1024 byte on chip data RAM
·Three 16 bit Timers/Counters
·One Watch Dog Timer
·Four 8-bit I/O ports for PDIP package
·Four 8-bit I/O ports + one 4-bit I/O ports for PLCC or QFP package
·Full duplex serial channel
·Bit operation instruction
·Page free jumps
·8-bit Unsigned Division
·8-bit Unsigned Multiply
·BCD arithmetic
·Direct Addressing
·Indirect Addressing
·Nested Interrupt
·Two priority level interrupt
·A serial I/O port
·Power save modes:
·Idle mode and Power down mode
·Code protection function Low EMI (inhibit ALE)
·Reset with address $0000 blank initiate ISP service program
·ISP service program space configurable in N*512byte (N=0 to 8) size
·Bank mapping direct addressing mode for access on-chip RAM
·Five channel Specific PWM (SPWM) build-in with P1.3 ~ P1.7


Pinout

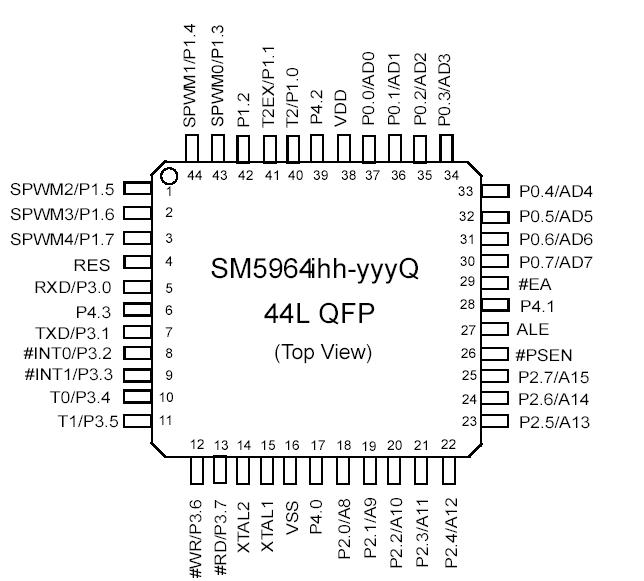

Connection Diagram


Description

The SM5964 series product is an 8 - bit single chip microcontroller with 64KB flash & 1K byte RAM embedded. It has In-System Programming (ISP) function and is a derivative of the 8052 microcontroller family. It has 5-channel SPWM build-in. User can access on-chip expanded RAM with easier and faster way by its 'bank mapping direct addressing mode' scheme. With its hardware features and powerful instruction set, it's straight forward to make it a versatile and cost effective controller for those applications which demand up to 32 I/O pins for PDIP package or up to 36 I/O pins for PLCC/QFP package, or applications which need up to 64K byte flash memory either for program or for data or mixed.

To program the on-chip flash memory, a commercial writer is available to do it in parallel programming method. The on-chip flash memory can be programmed in either parallel or serial interface with its ISP feature.
