Product Details

Description



Features:

 · Wide operation voltage range, 2.4V to 6V
 · Infrared remote control receiver
 · Two custom code to separate products
 · Eight control functions for continuous signal
 · Mulit-key control outputs
 · Two toggle signal can be optioned in outputs
 · A single terminal type oscillator by means of RC is provided
 · Low power consumption
 · High noise immunity
 · 14 pin DIP or SO package


Application

 · Consumer Products Remote Control
 · Toy Remote Control
 · Audio Remote Control

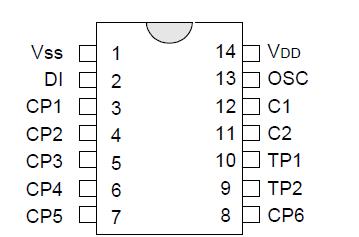

Pinout

Connection Diagram


Specifications

Parameter Symbol Test conditions
Ratings
Unit
Supply Voltage VDD-VSS
-0.3~6
V
Input Voltage VI
VSS-0.3~VDD+0.3
V
Output Voltage Vo
VSS-0.3~VDD+0.3
V
Maximum Power Consumption Pa VDD-VSS=5V
500
mW
Operating Temperature Topr
-20~70
Storage Temperature Tstg
-40~125



Description

SM5032C/D is an infrared remote control decoder utilizing COMOS technology, paired with SM5021 for transmitter. The remote control system is capable of controlling eight functions and CP1 to CP6 can multi-decode. There is an option for two toggle signal outputs in these data control functions.

Also there are two custom codes for user to separate different products.
