SM-T2

Features: · Power supply : 2.4V - 5.0V· Low stand-by current· Five functions control· Auto-power-off function for SM-T2· Few external components are neededApplication·Remote control car etc.PinoutSpecifications Parameter Symbol Ratings Unit ...

product image

SM-T2 Picture
See larger image
SeekIC No. : 004495610 Detail

SM-T2: Features: · Power supply : 2.4V - 5.0V· Low stand-by current· Five functions control· Auto-power-off function for SM-T2· Few external components are neededApplication·Remote control car etc.PinoutSp...

SM-T2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SM-T2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Power supply : 2.4V - 5.0V
· Low stand-by current
· Five functions control
· Auto-power-off function for SM-T2
· Few external components are needed


Application

·Remote control car etc.

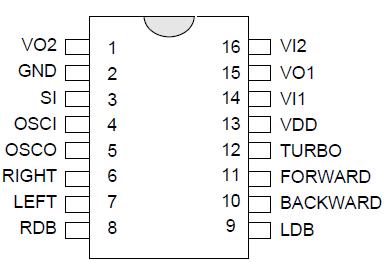

Pinout

Connection Diagram


Specifications

Parameter Symbol Ratings Unit
DC Supply Voltage VDD 5 V
Input/Output Voltage VIN GND-0.3 to VSS +0.3 V
Operating temperature Topt -10~60 oC
Storage Temperature Tstg -25~125 oC



Description

The SM-T2 / SM-R2 is a pair of CMOS chip, it was designed for remote controlled car applications.

The SM-T2 / SM-R2 has five control keys for controlling the motions ( i.e. forward, backward rightward, leftward and the turbo function ) of the remote controller car.
