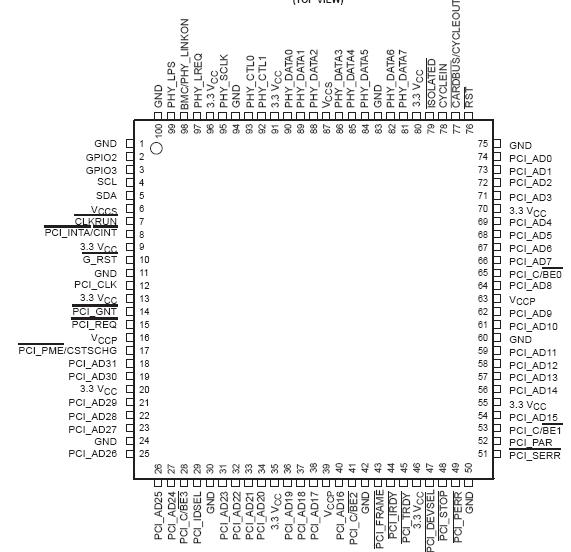

The Texas Instruments TSB12LV23 is a PCI-to-1394 host controller compatible with the latest PCI local bus, PCI bus power management interface, IEEE 1394-1995, and 1394 open host controller interface (OHCI) specifications. The chip provides the IEEE 1394 link function, and is compatible with serial bus data rates of 100 Mbits/s, 200 Mbits/s, and 400 Mbits/s.

As required by the 1394 Open Host Controller Interface (OHCI) TSB12LV23 and IEEE 1394A Specifications, internal control registers are memory-mapped and non-prefetchable. The PCI configuration header is accessed through configuration cycles specified by PCI, and provides Plug-and-Play (PnP) compatibility. Furthermore, the TSB12LV23 is compliant with the PCI Bus Power Management Interface Specification, per the PC 98 requirements. TSB12LV23 supports the D0, D2, and D3 power states.

The TSB12LV23 design provides PCI bus master bursting, and is capable of transferring a cacheline of data at 132 Mbytes/s after connection to the memory controller. Since PCI latency can be large even on a PCI Revision 2.1 system, deep FIFOs are provided to buffer 1394 data.

The TSB12LV23 provides physical write posting buffers and a highly tuned physical data path for SBP-2 performance. The TSB12LV23 also provides multiple isochronous contexts, multiple cacheline burst transfers, advanced internal arbitration, and bus holding buffers on the PHY/Link interface, thus, making the TSB12LV23 the best-in-class 1394 OHCI solution.

TSB12LV23 An advanced CMOS process is used to achieve low power consumption while operating at PCI clock rates up to 33 MHz.
