SLK2721

PinoutSpecificationsSupply voltage, VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .0.3 to 3 VVoltage range: TTL input terminals . . . . . . . . . . . . . . . . . . . . . .0.3 to 4 VLVDS terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 t...

product image

SLK2721 Picture
SeekIC No. : 004493240 Detail

SLK2721: PinoutSpecificationsSupply voltage, VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .0.3 to 3 VVoltage range: TTL input terminals . . . . . . . . . . . . . . . . . . . . . .0.3 ...

floor Price/Ceiling Price

Part Number:
SLK2721
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

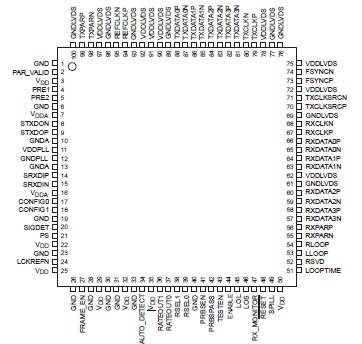

  Connection Diagram


Specifications

Supply voltage, VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .  0.3 to 3 V
Voltage range: TTL input terminals . . . . . . . . . . . . . . . . . . . . . . 0.3 to 4 V
LVDS terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 to 3 V
Any other terminal except above . . . . . . . . . . . . . . . .  0.3 to VDD + 0.3 V
Package power dissipation, PD . . . . . . . . . . . See Dissipation Rating Table
Storage temperature, Tstg . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Electrostatic discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HBM: 2 kv
Characterized free-air operating temperature range, TA . . 40°C to 85°C
Lead temperature 1.6 mm (1/16 inch) from case for 10 seconds . . .260°C



Description

The SLK2721 device is a single chip, multirate transceiver that derives high-speed timing signals for SONET/ SDH-based equipment. The device performs clock and data recovery, serial-to-parallel/parallel-to-serial conversion, and a frame detection function conforming to the SONET/SDH standards.

The device SLK2721 can be configured to operate under OC-48, OC-24, OC-12, or OC-3 data rate through the rate selection pins or the autorate detection function. An external reference clock operating at 622.08 MHz is required for the recovery loop, and it also provides a stable clock source in the absence of serial data transitions.

The SLK2721 device accepts 4-bit LVDS parallel data/clock and generates a NRZ SONET/SDH-compliant signal at the OC-3, OC-12, OC-24, or OC-48 data rate. It also recovers the data and clock from the serial SONET stream and demultiplexes it into 4-bit LVDS parallel data for full duplex operation. TXDATA0 and RXDATA0 are the first bits that are transmitted and received in time, respectively. The serial interface is a low jitter, PECL-compatible differential interface.

The SLK2721 device supports an FEC data rate up to 2.7 Gbps when configured to operate at the OC-48 data rate and provided with an external reference clock that is properly scaled.

The SLK2721 device provides a comprehensive suite of built-in tests for self-test purposes including local and remote loopback and pseudorandom bit stream (PRBS) (27-1) generation and verification.

The device SLK2721 comes in a 100-pin VQFP package that requires a single 2.5-V supply with 3.3-V tolerant inputs on the control pins. The SLK2721 device is very power efficient, dissipating less than 900 mW at 2.488 Gbps, the OC-48 data rate. It is characterised for operation from −40°C to 85°C.
