Product Details

Description



Features:

` 8-bit microcomputer in CMOS technology
` Instruction set opcode compatible with standard SAB8051 processor
` Dedicated, non-standard architecture with execution time less than half of standard
` SAB 8051 processor
` 24-Kbyte User ROM for application programs
` 2-Kbyte manufacturer ROM for Chip Management System (CMS)
` 2-Kbyte EEPROM as program/data memory
` 256-byte RAM
` 512-byte XRAM
` Power saving sleep mode
` Cold-/warm reset detection
` Clock freq. = int. freq.: 1 to 5 MHz1) at 5 V ± 10 %, 1 to 4 MHz at 3 V ± 10 %
` Contact configuration and serial interface in accordance with ISO 7816
` Supply voltage range: 2.7 V to 5.5 V
` < 10 mA supply current at 5 MHz
` Temperature range: 25 to + 70 °C. 2)
` ESD protection larger than 4 kV


Pinout

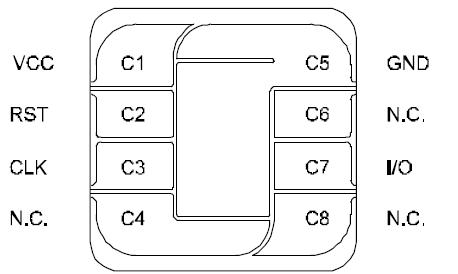

Connection Diagram


Description

SLE 44C24S is a member of the Infineon Technologies security controller family produced in 0.6 m CMOS technology. The CPU provides the high efficiency of the SAB 8051 instruction set together with enhanced performance and a new level of security features. The controller IC offers 24 Kbytes of User-ROM, 256 bytes internal RAM, 512 bytes XRAM and 2 Kbytes EEPROM. To minimize the overall power consumption, the chip card controller IC offers a sleep mode.

SLE 44C24S offers high performance and large memory sizes combined with outstanding security features on a minimized chip size. Therefore the device fulfills all chip card requirements and is especially well fitting for payment, loyalty, health care and access control.
