Position: Home  > All Categories> Integrated Circuits (ICs) > SLE11C001S

SLE11C001S

Features: ` 16-bit microcomputer in 0.6 m CMOS technology` Instruction set opcode compatible with standard SAB 8051 processor` Enhanced 16-bit arithmetic` Additional powerful instructions optimized for chip card applications` Dedicated, non-standard architecture with execution time six times faste...

product image

SLE11C001S Picture
See larger image
SeekIC No. : 004493044 Detail

SLE11C001S: Features: ` 16-bit microcomputer in 0.6 m CMOS technology` Instruction set opcode compatible with standard SAB 8051 processor` Enhanced 16-bit arithmetic` Additional powerful instructions optimized ...

SLE11C001S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SLE11C001S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 16-bit microcomputer in 0.6 m CMOS technology
` Instruction set opcode compatible with standard SAB 8051 processor
` Enhanced 16-bit arithmetic
` Additional powerful instructions optimized for chip card applications
` Dedicated, non-standard architecture with execution time six times faster than standard SAB 8051 processor
` 31.5-Kbytes User ROM for application programs
` 512-bytes reserved ROM for Resource Management System (RMS) with intelligent write/erase routines
` 16-Kbytes EEPROM as program/data memory
` 1280 bytes RAM
` CRC Module
` Power saving sleep mode
` Clock freq. = int. freq.: 1 to 7.5 MHz
` Contact configuration and serial interface in accordance with ISO 7816
` Supply voltage range: 2.7 V to 5.5 V
` Current consumption < 10 mA at 5 MHz and 5.5 V
` Temperature range: -25 to +70°C
` ESD protection larger than 4 kV
` Software compatible with SLE 66C160S, SLE 44C160S


Pinout

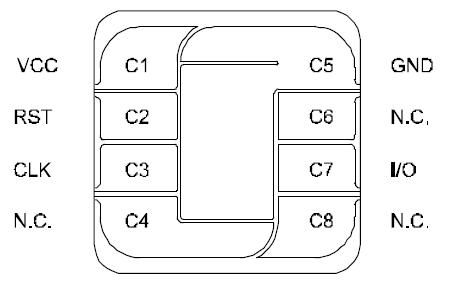

Connection Diagram


Description

SLE 11C001S is a member of the Infineon Technologies high end security controller family in 0.6 m CMOS technology. The CPU provides the high efficiency of the SAB 8051 instruction set extended by additional powerful instructions together with enhanced performance, memory sizes and security features.

The controller IC offers 31.5 Kbytes of User-ROM, 256 bytes internal RAM, 1024 bytes XRAM and 16 Kbytes EEPROM. It suits the requirements of the new generation of operating systems.
