Product Details

Description

Features:

Phase control for resistive and inductive loads
Sensor operation no machanically moved
    switching elements
Operation possible from several extensions
Capable of replacing electromechanical wall
    switches in conventional light installations
High interference immunity, even against ripple
    control signals
Programming input for selection of three different func-
    tions (mode A/B/C)
Soft start
Safety turn-OFF

Pinout

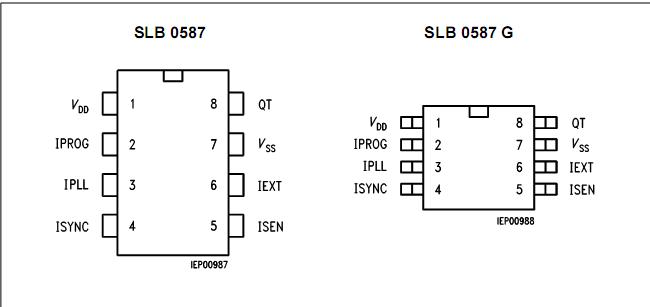

Connection Diagram

Specifications

Parameter	Symbol	min.	max.	Unit
Supply voltage	V_SS	7.5	0.3	V
Input voltage	V_I	VS0.3	0.3	V
Input current: Sync input Extension input	I_I I_I	0.5 1	0.5 1	mA mA
Junction temperature	T_stg		125	°C
Storage temperature		55	125	°C
Total power dissipation (T_A= 25°C)			10	mW
Thermal resistance System-air (P-DIP-8) System-air (P-DSO-8-1)	R_{th SA} R_{th SA}		135 231	K/W K/W

Description

For applications where the SLB0586A has been used, it is possible to replace the SLB0586A by the SLB0587 if the appropriate external wiring in accordance with the data sheet is maintained.

The SLB0587 is a CMOSIC and the advanced version of the version SLB0586A.

The IC of the SLB0587 permits the design of digital electronic phase controls for operation of incandes-cent lamps, low-voltage halogen lamps with in-series connected transformers, and universal as well as split-pole motors.

Parameters:

Technical/Catalog Information	SLB0587
Vendor	Infineon Technologies
Category	Integrated Circuits (ICs)
Package / Case	8-DIP
Packaging	Tube
Voltage - Supply	-5.6 V ~ -4.5 V
Type	Halogen Driver
Current - Supply	500A
Current - Output	65mA
Frequency	47.5 ~ 63 kHz
Operating Temperature	0°C ~ 100°C
Lead Free Status	Request Inventory Verification
RoHS Status	Request Inventory Verification
Other Names	SLB0587 SLB0587 SLB0587IN ND SLB0587INND SLB0587IN
