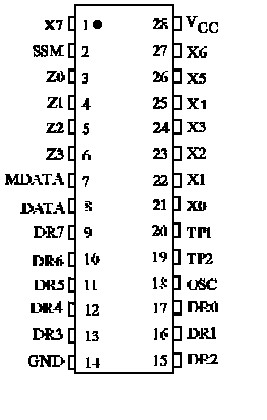

Features: · Low voltage requirement· Single pin oscillator· Biphase transmission technique· Test mode facilityPinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND) -0.5 to +8.5 V VIN DC Input Voltage (Referenced to GND)* -0.5 to VCC...
SL3010: Features: · Low voltage requirement· Single pin oscillator· Biphase transmission technique· Test mode facilityPinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Parameter |
Value |
Unit |
VCC | DC Supply Voltage (Referenced to GND) |
-0.5 to +8.5 |
V |
VIN | DC Input Voltage (Referenced to GND)* |
-0.5 to VCC +0.5 |
V |
VOUT | DC Output Voltage (Referenced to GND)* |
-0.5 to VCC +0.5 |
V |
IIN | DC Input Current |
±10 |
mA |
IOUT | DC Output Current |
±10 |
mA |
PDO PDO |
Maximum Power Dissipation OSC output other outputs |
50 100 |
mW mW |
PD | Power Dissipation in Still Air |
200 |
mW |
Tstg | Storage Temperature |
-65 to +150 |
°C |
The SL3010 is intended as a general purpose (RC-5) infrared remote control system for use where a low voltage supply and a large debounce time are expected. The device can generate 2048 different commands and utilizes a keyboard with a single pole switch for each key. The command of SL3010 are arranged so that 32 systems can be addressed, each system containing 64 different commands. The keyboard interconnection is illustrated by Fig.1.
