SL2100

Features: • Single chip synthesised broadband solution• Compatible with both up converter anddownconverter requirements in doubleconversion tuner applications• Compatible with digital and analogue system requirements• CSO < -62 dBc, CTB < -64 dBc• Extremely low ...

product image

SL2100 Picture
See larger image
SeekIC No. : 004492470 Detail

SL2100: Features: • Single chip synthesised broadband solution• Compatible with both up converter anddownconverter requirements in doubleconversion tuner applications• Compatible with digi...

SL2100 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SL2100
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single chip synthesised broadband solution
• Compatible with both up converter and
downconverter requirements in double
conversion tuner applications
• Compatible with digital and analogue system requirements
• CSO < -62 dBc, CTB < -64 dBc
• Extremely low phase noise balanced local
oscillator, with I2C bus controlled bandswitching
and with very low fundamental and
harmonic radiation
• Integral fast mode compliant I2C bus controlled
PLL frequency synthesiser designed for high
comparison frequencies and low phase noise performance
• Buffered crystal output for pipelining system
reference frequency
• Full ESD protection. (Normal ESD handling
procedures should be observed)



• Single chip synthesised broadband solution
• Compatible with both up converter and
downconverter requirements in double
conversion tuner applications
• Compatible with digital and analogue system requirements
• CSO < -62 dBc, CTB < -64 dBc
• Extremely low phase noise balanced local
oscillator, with I2C bus controlled bandswitching
and with very low fundamental and
harmonic radiation
• Integral fast mode compliant I2C bus controlled
PLL frequency synthesiser designed for high
comparison frequencies and low phase noise performance
• Buffered crystal output for pipelining system
reference frequency
• Full ESD protection. (Normal ESD handling
procedures should be observed)




Application

• Double conversion tuners
• Digital Terrestrial tuners
• Cable Modems
• Data transmit systems
• Data communications systems
• MATV

• Double conversion tuners
• Digital Terrestrial tuners
• Cable Modems
• Data transmit systems
• Data communications systems
• MATV




Pinout

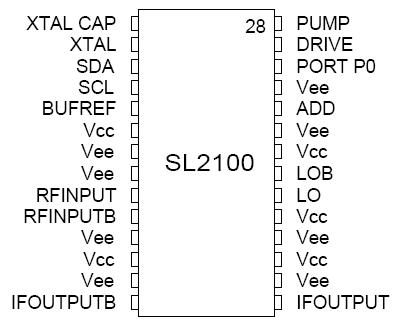

Connection Diagram

Connection Diagram




Specifications

Characteristic min max units Conditions
Supply voltage -0.3 7 V
RF input voltage 117 dBmV Differential, ac coupled inputs
All I/O port DC offsets -0.3 Vcc+0.3 V
SDA, SCL DC offsets -0.3 6 Vcc = Vee to 5.25V
Storage temperature -55 150 oC
Junction temperature 150 oC
Package thermal resistance, chip to
ambient		 20 oC/W
Package thermal resistance, chip to
ambient		 85
Power consumption at 5.25V 630 mW
ESD protection 2 kV Mil-std 883B method 3015 cat1




Characteristic min max units Conditions
Supply voltage -0.3 7 V
RF input voltage 117 dBmV Differential, ac coupled inputs
All I/O port DC offsets -0.3 Vcc+0.3 V
SDA, SCL DC offsets -0.3 6 Vcc = Vee to 5.25V
Storage temperature -55 150 oC
Junction temperature 150 oC
Package thermal resistance, chip to
ambient		 20 oC/W
Package thermal resistance, chip to
ambient		 85
Power consumption at 5.25V 630 mW
ESD protection 2 kV Mil-std 883B method 3015 cat1





Description

The SL2100 is a fully integrated single chip broadband mixer oscillator with on-board low phase DS5365 ISSUE 1.2 November 2001 Ordering Information SL2100B/KG/NP2S (tubes) SL2100B/KG/NP2T (tape and reel) noise I 2 C bus controlled PLL frequency synthesiser. It is intended primarily for application in double conversion tuners as both the up and down converter and is compatible with HIIF frequencies up to 1.4 GHz and all standard tuner IF output frequencies.

The SL2100 contains all elements necessary, with the exception of local oscillator tuning network, loop filter and crystal reference to fabricate a complete synthesised block converter, compatible with digital and analogue requirements.
