SL2017

Features: ·Single chip full band solution, compatible with digital and analog transmissions·Low noise RF input·High input signal handling to eliminate the requirement for front end AGC·Low phase noise local oscillator buffer optimised for low symbol rate applications·Low radiation design·IF AGC am...

product image

SL2017 Picture
See larger image
SeekIC No. : 004492465 Detail

SL2017: Features: ·Single chip full band solution, compatible with digital and analog transmissions·Low noise RF input·High input signal handling to eliminate the requirement for front end AGC·Low phase noi...

SL2017 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SL2017
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Single chip full band solution, compatible with digital and analog transmissions
·Low noise RF input
·High input signal handling to eliminate the requirement for front end AGC
·Low phase noise local oscillator buffer optimised for low symbol rate applications
·Low radiation design
·IF AGC amplifier with dual selectable outputs
·ESD protection. (Normal ESD handling procedures should be observed)


Application

·Satellite tuners
·Communications systems


Pinout

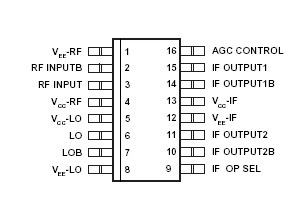

Connection Diagram


Specifications

Parameter
Pin
Value
Units
Conditions
Min
Max
Supply voltages VCC
RF input voltage
RF input DC offset
LO input DC offset
IF-OP-SEL input DC offset
IF outputs 1 and 2 DC offset
AGC Control input DC offset
Storage temperature
Junction temperature
MP16 thermal resistance
Chip to ambient
Chip to case
Power consumption at VCC=5.25V
ESD protection

4,5,13
2,3
2,3
6,7
9
10, 11
14, 15
16




ALL
-0.3
-0.3
-0.3
-0.3
-0.3
-0.3
-55
1.75
7
2.5
VCC+0.3
VCC+0.3
VCC+0.3
VCC+0.3
VCC+0.3
+150
+150
111
41
580
V
Vp-p
V
V
V
V
°C
°C
°C/W
°C/W
mW
kV

Transient










Mil std 883 latest revision method
3015 cat 1.




Description

The SL2017 is a fully integrated mixer with output AGC, intended primarily for application in satellite tuners, where itdownconverts the first high IF from the outdoor unit to the second IF for data demodulation.

The SL2017 contains a low noise RF input amplifier and mixer functioning to 2.15GHz, an integrated low phase noise local oscillator buffer and an AGC IF output buffer amplifier. The IF signal is available at one of two outputs selected by the IF-OP-SEL input.

The signal handling of the SL2017 is sufficient to greatly simplify or remove the requirement for input AGC with appropriate image filtering in full band systems, or to remove the requirement for band limit filtering with appropriate AGC in half band systems.
