Product Details

Description



Features:

` Pin compatibility to the PCA82C200 stand-alone CAN controller
` Electrical compatibility to the PCA82C200 stand-alone CAN controller
` PCA82C200 mode (BasicCAN mode is default)
` Extended receive buffer (64-byte FIFO)
` CAN 2.0B protocol compatibility (extended frame passive in PCA82C200 compatibility mode)
` Supports 11-bit identifier as well as 29-bit identifier
` Bit rates up to 1 Mbits/s
` PeliCAN mode extensions:
Error counters with read/write access
Programmable error warning limit
Last error code register
Error interrupt for each CAN-bus error
Arbitration lost interrupt with detailed bit position
Single-shot transmission (no re-transmission)
Listen only mode (no acknowledge, no active error flags)
Hot plugging support (software driven bit rate detection)
Acceptance filter extension (4-byte code, 4-byte mask)
Reception of 'own' messages (self reception request)
` 24 MHz clock frequency
` Interfaces to a variety of microprocessors
` Programmable CAN output driver configuration
` Extended ambient temperature range (-40 to +125 °C).

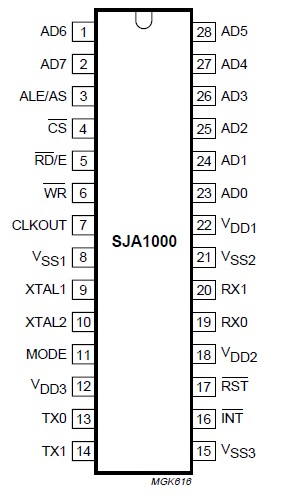

Pinout

Connection Diagram


Description

The SJA1000 is a stand-alone controller for the Controller Area Network (CAN) used within automotive and general industrial environments. It is the successor of the PCA82C200 CAN controller (BasicCAN) from Philips Semiconductors. Additionally, a new mode of operation is implemented (PeliCAN) which supports the CAN 2.0B protocol specification with several new features.
