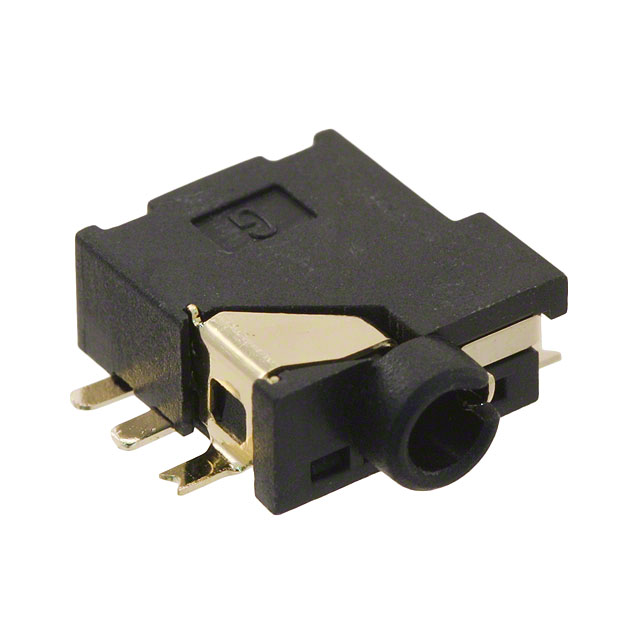

See larger image

SeekIC No. : 003016595 Detail

SJ1-42515RS-SMT: CONN AUDIO JACK 4COND 2.5MM SMD

SJ1-42515RS-SMT Data Sheet

US $ .49~1.04 / Piece | Get Latest Price

Part Number:: SJ1-42515RS-SMT
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$1.04
$.81
$.62
$.49

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SJ1-2503A evaluate
US $.14 - .53 / Piece

CONN JACK STEREO RTANG 2.5MM
SJ1-2513-SMT evaluate
US $.43 - .91 / Piece

CONN AUDIO JACK STEREO 2.5MM SMD
SJ1-2514-SMT evaluate
US $.44 - .92 / Piece

CONN AUDIO JACK STEREO 2.5MM SMD

Product Details

Quick Details

Series:	-	Manufacturer:	CUI Inc
Connector Type:	Phone Jack	Gender:	Female
Signal Lines:	Multiple	Plug/Mating Plug Diameter:	2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Number of Positions/Contacts:	4 Conductors, 5 Contacts	Maximum Reverse Leakage Current :	800 uA
Internal Switch(s):	Single Switch	Mounting Type:	Surface Mount, Right Angle
Termination:	Solder	Shielding:	Unshielded
Features:	-

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Phone Jack
Gender: Female
Plug/Mating Plug Diameter: 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Internal Switch(s): Single Switch
Mounting Type: Surface Mount, Right Angle
Termination: Solder
Shielding: Unshielded
Features: -
Color - Contact: Black
Signal Lines: Multiple
Number of Positions/Contacts: 4 Conductors, 5 Contacts

Parameters:

Technical/Catalog Information	SJ1-42515RS-SMT
Vendor	CUI Inc (VA)
Category	Connectors
Connector Type	Phone Jack
Gender	Female
Plug/Mating Plug Diameter	2.5mm (Sub Mini, Miniature)
Signal Lines	Multiple
Number of Positions/Contacts	4 Conductors, 5 Contacts
Mounting Type	Surface Mount, Right Angle
Features	Internal Switch
Color	Black
Termination	Solder
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	SJ1 42515RS SMT SJ142515RSSMT CP1 42515RSSJDKR ND CP142515RSSJDKRND CP1-42515RSSJDKR
