SeekIC No. : 003016581 Detail

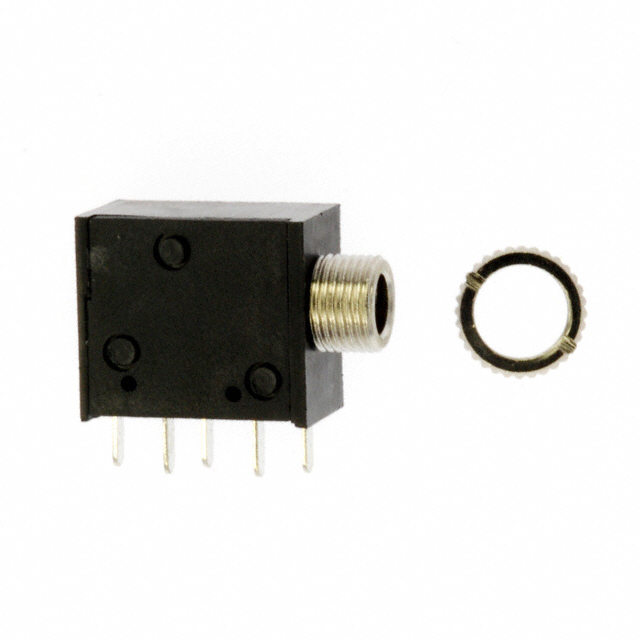

SJ1-3535: CONN JACK STEREO R/A 5PIN 3.5MM

SJ1-3535 Data Sheet

US $ .35~1 / Piece | Get Latest Price

Part Number:: SJ1-3535
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~2500

Unit Price
$1
$.77
$.59
$.47
$.42
$.35

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SJ1-2503A evaluate
US $.14 - .53 / Piece

CONN JACK STEREO RTANG 2.5MM
SJ1-2513-SMT evaluate
US $.43 - .91 / Piece

CONN AUDIO JACK STEREO 2.5MM SMD
SJ1-2514-SMT evaluate
US $.44 - .92 / Piece

CONN AUDIO JACK STEREO 2.5MM SMD

Product Details

Quick Details

Series:	-	Manufacturer:	CUI Inc
Connector Type:	Phone Jack	Gender:	Female
Signal Lines:	Stereo	Plug/Mating Plug Diameter:	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Recovery Time :	20 ns	Number of Positions/Contacts:	3 Conductors, 5 Contacts
Internal Switch(s):	Two Switches	Mounting Type:	Panel Mount; Through Hole, Right Angle
Termination:	Solder	Shielding:	Unshielded
Features:	Mounting Hardware, Thread Lock

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Phone Jack
Gender: Female
Termination: Solder
Shielding: Unshielded
Signal Lines: Stereo
Plug/Mating Plug Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Internal Switch(s): Two Switches
Color - Contact: Silver
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Mounting Type: Panel Mount; Through Hole, Right Angle
Features: Mounting Hardware, Thread Lock

Parameters:

Technical/Catalog Information	SJ1-3535
Vendor	CUI Inc
Category	Connectors
Connector Type	Phone Jack
Gender	Female
Plug/Mating Plug Diameter	3.50mm (1/8", Mini Plug)
Signal Lines	Stereo
Number of Positions/Contacts	3 Conductors, 5 Contacts
Mounting Type	Through Hole, Right Angle
Features	Internal Switch, Mounting Hardware, Thread Lock
Color	Black
Termination	Solder
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SJ1 3535 SJ13535 CP1 3535 ND CP13535ND CP1-3535
