SeekIC No. : 003016319 Detail

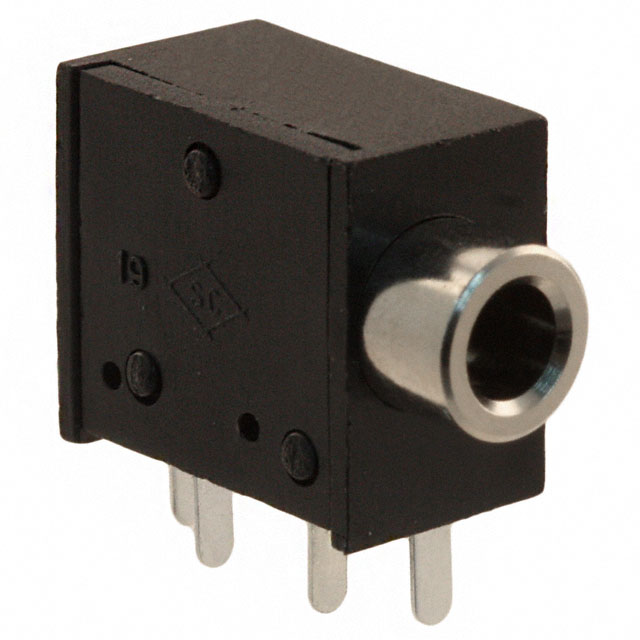

SJ-3534N: CONN AUDIO JACK 3.5MM STEREO

SJ-3534N Data Sheet

US $ .27~.68 / Piece | Get Latest Price

Part Number:: SJ-3534N
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~2500

Unit Price
$.68
$.53
$.41
$.32
$.29
$.27

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SJ-3401 (BLACK) 1" evaluate
US $23.99 - 23.99 / Piece

LOOP PLAIN BACK 1" X 50YD BLACK
SJ-3401 (BLACK) 5/8" evaluate
US $16.81 - 16.81 / Piece

LOOP PLAIN BACK 5/8" X 50YD BLK
SJ-3401 (WHITE) 1" evaluate
US $23.99 - 23.99 / Piece

LOOP PLAIN BACK 1" X 50YD WHITE

Product Details

Quick Details

Series:	-	Manufacturer:	CUI Inc
Connector Type:	Phone Jack	Gender:	Female
Signal Lines:	Stereo	Plug/Mating Plug Diameter:	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Recovery Time :	20 ns	Number of Positions/Contacts:	3 Conductors, 4 Contacts
Internal Switch(s):	Single Switch	Mounting Type:	Through Hole, Right Angle
Termination:	Solder	Shielding:	Unshielded
Features:	-

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Phone Jack
Gender: Female
Internal Switch(s): Single Switch
Termination: Solder
Shielding: Unshielded
Features: -
Signal Lines: Stereo
Plug/Mating Plug Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Mounting Type: Through Hole, Right Angle
Color - Contact: Silver
Number of Positions/Contacts: 3 Conductors, 4 Contacts

Parameters:

Technical/Catalog Information	SJ-3534N
Vendor	CUI Inc
Category	Connectors
Connector Type	Phone Jack
Gender	Female
Plug/Mating Plug Diameter	3.50mm (1/8", Mini Plug)
Signal Lines	Stereo
Number of Positions/Contacts	3 Conductors, 4 Contacts
Mounting Type	Through Hole, Right Angle
Features	Internal Switch
Color	Black
Termination	Solder
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SJ 3534N SJ3534N CP 3534N ND CP3534NND CP-3534N
