Position: Home  > All Categories> Integrated Circuits (ICs) > SIP16

SIP16

Features: `Fast Rise Time, Low DCR`High Bandwidth 0.35 / tr`Low Distortion LC Network`16 or 20 Equal Delay Taps`Standard Impedances: 50 - 75 - 100 - 200 `Stable Delay vs. Temperature: 100 ppm/`Operating Temperature Range -55 to +125PinoutSpecificationsPulse Overshoot (Pos) ...........................

product image

SIP16 Picture
See larger image
SeekIC No. : 004491398 Detail

SIP16: Features: `Fast Rise Time, Low DCR`High Bandwidth 0.35 / tr`Low Distortion LC Network`16 or 20 Equal Delay Taps`Standard Impedances: 50 - 75 - 100 - 200 `Stable Delay vs. Temperature: 100 ppm/`Opera...

SIP16 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SIP16
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Fast Rise Time, Low DCR
`High Bandwidth 0.35 / tr
`Low Distortion LC Network
`16 or 20 Equal Delay Taps
`Standard Impedances: 50 - 75 - 100 - 200
`Stable Delay vs. Temperature: 100 ppm/
`Operating Temperature Range -55 to +125




Pinout

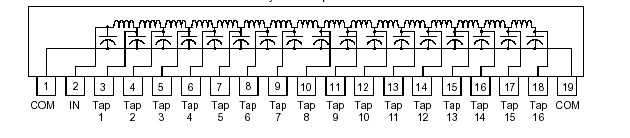

Connection Diagram


Specifications

Pulse Overshoot (Pos) .................................. 5% to 10%, typical
Pulse Distortion (S) .................................................... 3% typical
Working Voltage .............................................. 25 VDC maximum
Dielectric Strength ........................................... 100VDC minimum
Insulation Resistance .............. 1,000 Megohms min. @ 100VDC
Temperature Coefficient ...............................100 ppm/, typical
Band Width (fC) .................................................... .35/tr approx.
Operating Temperature Range .......................... -55°to +125
Storage Temperature Range ..............................-65°to +150
