SII164

Features: • Scaleable Bandwidth: 25 - 165MHz (VGA to UXGA)• Flexible Graphics Controller Interface: 12-bit or 24-bit mode 1 pixel/clock inputs• Flexible Input Clocking: Single clock single edge (24-bit), Single clock dual edge (12-/24- bit), Dual clock single edge (12-bit)•...

product image

SII164 Picture
See larger image
SeekIC No. : 004491226 Detail

SII164: Features: • Scaleable Bandwidth: 25 - 165MHz (VGA to UXGA)• Flexible Graphics Controller Interface: 12-bit or 24-bit mode 1 pixel/clock inputs• Flexible Input Clocking: Single cloc...

SII164 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SII164
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Scaleable Bandwidth: 25 - 165MHz (VGA to UXGA)
• Flexible Graphics Controller Interface: 12-bit or 24-bit mode 1 pixel/clock inputs
• Flexible Input Clocking: Single clock single edge (24-bit), Single clock dual edge (12-/24- bit), Dual clock single edge (12-bit)
• I2C Slave Programming Interface up to 100kHz
• Low Voltage Interface: 3.3V with option for 1.0 to 3.0V Low Voltage Signal Mode
• Monitor Detection supported through hot plug and receiver detection
• De-skewing Option varies input clock to input data timing
• Low Power: 3.3V operation (120mA max.) and Power Down mode (1mA max.)
• Cable Distance Support: over 5m with twisted pair and fiber-optics ready
• Compliant with DVI 1.0 (DVI is backwards compliant with VESA® P&DTM and DFP)


Pinout

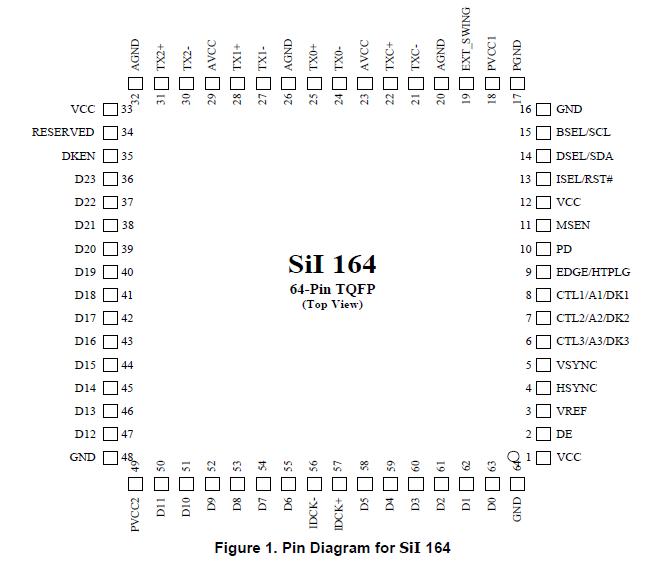

Connection Diagram


Specifications





Symbol
Parameter
Min
Typ
Max
Units
VCC
 Supply Voltage 3.3V
-0.3
4.0
V
VI
 Input Voltage
-0.3
VCC+ 0.3
V
VO
 Output Voltage
-0.3
VCC+ 0.3
V
TJ
 Junction Temperature (with power applied)
125
TSTG
 Storage Temperature
-65
150



Description

The SiI 164 transmitter SII164 uses PanelLink® Digital technology to support displays ranging from VGA to UXGA resolutions (25 - 165Mpps) in a single link interface.

The SiI 164 transmitter SII164 has a highly flexible interface with either a 12-bit mode (½ pixel per clock edge) or 24-bit mode 1-pixel/clock input for true color (16.7 million) support. In 24-bit mode, the SiI 164 supports single or dual edge clocking. In 12-bit mode, the SiI164 supports dual edge single clocking or single edge dual clocking. The SiI 164 can be programmed though an I2C interface. In addition the SiI 164 also supports Receiver and Hot Plug Detection.

SII164 PanelLink Digital technology simplifies PC design by resolving many of the system level issues associated with high-speed mixed signal design, providing the system designer with a digital interface solution that is quicker to market and lower in cost.
