SH67P33

Features: SH6610C-based single-chip 4-bit micro-controllerROM: 1K X 16 bits OTP ROMRAM: 48 X 4 bits RAM (Data Memory)Operation voltage: 1.8V - 3.6V (Typical: 3.0V)16 CMOS bi-directional I/O pins and 1 COMS input pin4-level subroutine nesting (including interrupts)One 8-bit auto re-loadable timer/c...

product image

SH67P33 Picture
See larger image
SeekIC No. : 004489610 Detail

SH67P33: Features: SH6610C-based single-chip 4-bit micro-controllerROM: 1K X 16 bits OTP ROMRAM: 48 X 4 bits RAM (Data Memory)Operation voltage: 1.8V - 3.6V (Typical: 3.0V)16 CMOS bi-directional I/O pins and...

SH67P33 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SH67P33
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

SH6610C-based single-chip 4-bit micro-controller
ROM: 1K X 16 bits OTP ROM
RAM: 48 X 4 bits RAM (Data Memory)
Operation voltage: 1.8V - 3.6V (Typical: 3.0V)
16 CMOS bi-directional I/O pins and 1 COMS input pin
4-level subroutine nesting (including interrupts)
One 8-bit auto re-loadable timer/counter
Warm-up timer for power-on reset
Powerful interrupt sources:
- Internal interrupt (Timer0).
- External interrupts: (rising edge).
PORTB & PORTC or PORTB, PORTC & PORTD (Code Option)
Remote control programmable carrier synthesizer
Oscillator :(Code Option)
- External Ceramic Resonator/Crystal Oscillator: 400kHz - 4MHz
- Built-in RC Oscillator: 4MHz typical
Instruction cycle time:
- 4/455kHz ( 8.79s) for 455kHz OSC clock
- 4/4MHz (= 1s) for 4MHz OSC clock
Two low power operation modes: HALT and STOP
Built-in watchdog timer
OTP type/Code protection
20-pin DIP/TSSOP/SOP package


Pinout

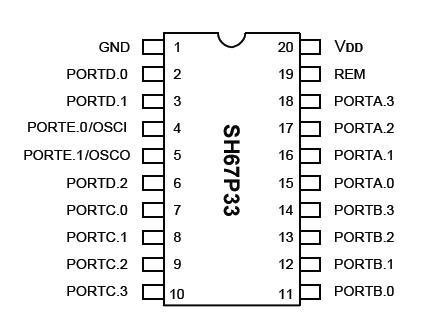

Connection Diagram


Specifications

DC Supply Voltage . . . . . . . . . . . . . . .-0.3V to +6.0V
Input Voltage . . . . . . . . . . . . . . . -0.3V to VDD + 0.3V
Operating Ambient Temperature . . . . -10 to +70
Storage Temperature . . . . . . . . . . . . -55to +125


Description

SH67P33 is dedicated to infrared remote control transmitter applications. This SH67P33 chip integrates the SH6610C 4-bit CPU core with RAM, program ROM, one 8-bit timer, and programmable input/output pins and carrier synthesizer. When in standby function, system will stop oscillator and remain low power dissipation.
