SGM9117

Supply Voltage, V+ to V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.5 V
Input Voltage. . . . . . . . . . . . . . . . . . . . .GND 0.3 V to (+VS) +0.3V
Storage Temperature Range . . . . . . . . . . . . . . . . . .65 to +150
Junction Temperature . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .160
Operating Temperature Range . . . . . . . . . . . . . . . .40 to +125
Power Dissipation, PD @ TA = 25
SO-8 ........................................................................................0.8W
Package Thermal Resistance
SO-8, JA.......................................................................... 128 /W
Lead Temperature Range (Soldering 10 sec) . . . . . . . . . . . . . 260
ESD Susceptibility
HBM........................................................................................4000V
MM............................................................................................400V

NOTES 1. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

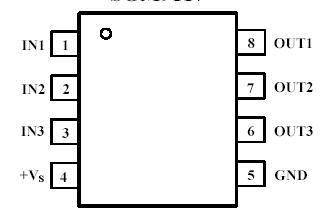

The SGM9117 includes triple high-speed video buffers with G = +2 in one package. Every video buffer has 3 dB full signal bandwidth in excess of 200 MHz, along with slew rates in excess of 300 V/µs. With65 dB of crosstalk at 1MHz, the SGM9117 is useful in many high-speed applications. The differential gain and differential phase error are 0.01% and 0.02°.The SGM9117 is ideal for RGB and YPbPr signal buffering or driving. Operating from single supplies ranging from +2.5V to +5.5V and sinking an ultra-low 27.5mA quiescent current, the SGM9117 is also ideally suited for battery powered applications.

The SGM9117 is specified over the extended 40°C to +125°C temperature range. It has lead (Pb) free SOIC-8 package.
