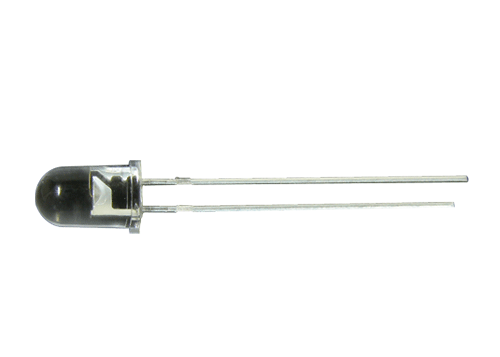

Features: • Green Colored transparency lens type• 5mm(T-13/4) all plastic mold type• Low power consumptionPinoutSpecifications Characteristic Symbol Rating Unit Power dissipation PD 75 mW Forward current IF 30 mA *1Peak forward current ...
SG5411(B): Features: • Green Colored transparency lens type• 5mm(T-13/4) all plastic mold type• Low power consumptionPinoutSpecifications Characteristic Symbol Rating Unit ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Characteristic |
Symbol |
Rating |
Unit |
Power dissipation |
PD |
75 |
mW |
Forward current |
IF |
30 |
mA |
*1Peak forward current |
IFP |
50 |
A |
Reverse voltage |
VR |
4 |
V |
Operating temperature range |
Topr |
-25~85 |
|
Storage temperature range |
Tstg |
-30~100 |
|
*2Soldering temperature |
Tsol |
260 for 10 seconds |
*1.Duty ratio = 1/16, Pulse width = 0.1ms
*2.Keep the distance more than 2.0mm from PCB to the bottom of LED package
