SFH4580

EMITTER IR 880NM 5MM RADIAL

product image

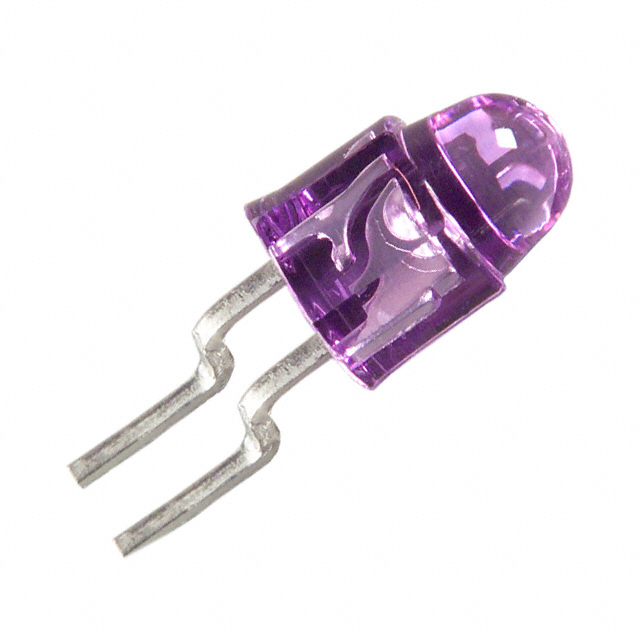

SFH4580 Picture
See larger image
SeekIC No. : 003612015 Detail

SFH4580: EMITTER IR 880NM 5MM RADIAL

SFH4580 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SFH4580
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: OSRAM Opto Semiconductors Inc
Current - DC Forward (If): 100mA Radiant Intensity (Ie) Min @ If: 25mW/sr @ 100mA
Wavelength: 880nm Voltage - Forward (Vf) Typ: 1.5V
Viewing Angle: 30° Orientation: Top View
Mounting Type: Through Hole Package / Case: Radial - 2 Lead, Formed
Package / Case : SOT-109

Description

Series: -
Current - DC Forward (If): 100mA
Orientation: Top View
Voltage - Forward (Vf) Typ: 1.5V
Mounting Type: Through Hole
Radiant Intensity (Ie) Min @ If: 25mW/sr @ 100mA
Viewing Angle: 30°
Wavelength: 880nm
Manufacturer: OSRAM Opto Semiconductors Inc
Packaging: Cut Tape (CT)
Package / Case: Radial - 2 Lead, Formed


Features:

· Fabricated in a liquid phase epitaxy process
· Suitable for surface mounting (SMT)
· Available on tape and reel
· Same package as photodiode SFH 2500/ FH 2505
· High reliability
· Spectral match with silicon photodetectors


Application

· IR remote control of hi-fi and TV-sets, video ape recorders, dimmers
· Remote control for steady and varying ntensity


Specifications

Bezeichnung
Description
Symbol
Symbol
Wert
Value
Einheit
Unit
Betriebs- und Lagertemperatur
Operating and storage temperature range		 Top; Tstg 55 ... + 100
°C
Sperrschichttemperatur
Junction temperature		 Tj 100 °C
Sperrspannung
Reverse voltage		 VR 5 V
Durchlabstrom
Forward current		 IF 100 mA
Stobstrom, t £ 10 ms
Surge current		 IFSM 2.5 A
Verlustleistung
Power dissipation		 Ptot 200 mW
Wärmewiderstand, freie Beinchenlänge
max. 10 mm
Thermal resistance, lead length between
package bottom and PC-board max. 10 mm		 RthJA

 375

 K/W
